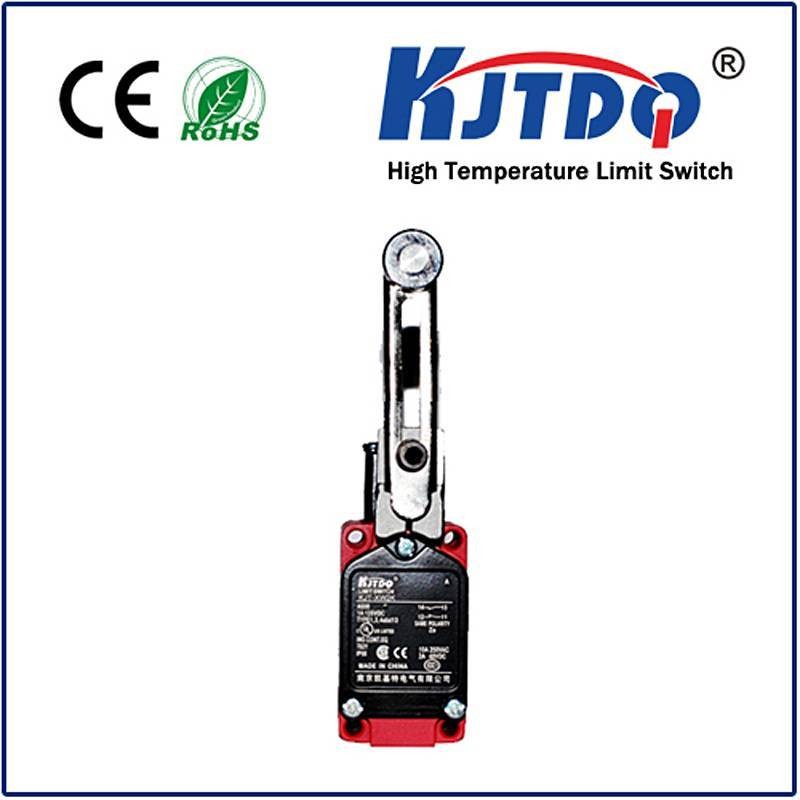

High temperature limit switch XWKB

High temperature Limit switch

High temperature limit switch XWKB

Trade Terms FOB Nanjing/Shanghai
Payment Terms T/T, Western Union, PayPal
Delivery Time 3-15 working days for making sample. 7-20 working days for production.
Packing Standard Export Cartons
Shipping By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ 5PCS
Place of Origin Nanjing City, Jiangsu Province, China
Certificate CE,RoHS,ISO9001
  • Product Detail
LIMIT SWITCH

KJT high-temperature resistance travel switch adopts a fully closed contact switch cast by high-temperature resistance material. One set of normally open and the other set of normally closed maximum allowable current 5A/AC 220V (other voltages are predetermined). After special treatment, the contact can be used for a long time in a high-temperature environment without being damaged by oxidation or pollution.

Technical parameter
Rated Current 10A /250VAC
Operating Speed 1mm-2m/s
Operating Frequency

Machinery:120times/minute

Electric30times/minute

Contect Resistance <15 mΩ(mm) (initial stage)
Insulation Resistance >100Ohm (<500VDC )
Withstand Voltage

No connection between terminals.   1000VAC50/60Hz lasts 1 minute

Between the terminal and the contact.  2200VAC50/60Hz lasts 1 minute

Between terminal and no-load current metal. 2200VAC50/60Hz lasts 1 minute

Vibration  Misoperation Endurance          10~55Hz,1.5mm          double-amplitude
Impact

Mechanical Endurance                >1,000m/S²  (>100G)

 Misoperation Endurance            >300m/S²  (>30G)

Temperature  -40°C~+350°C
Humidity <95%RH
Working Life

Machinery:                                     >15million times

 Electric                                       >0.5million times

Protection Degree IEC specificationIP66

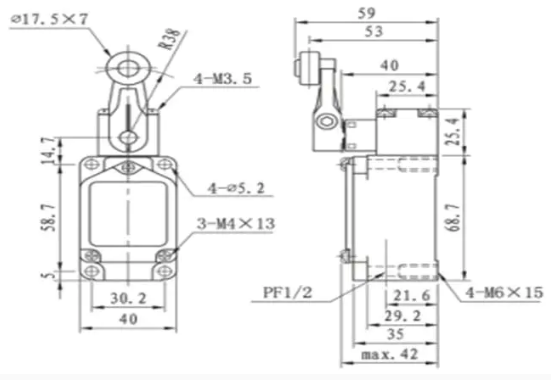

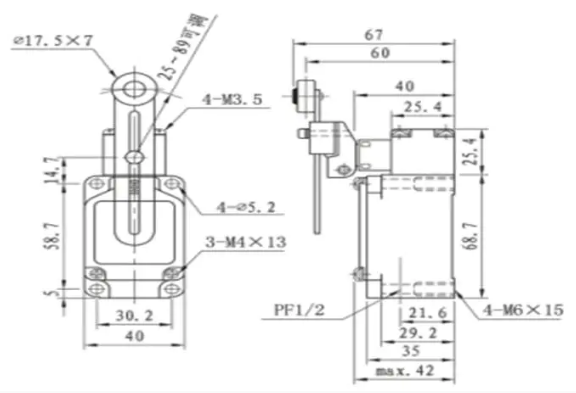

Product Size

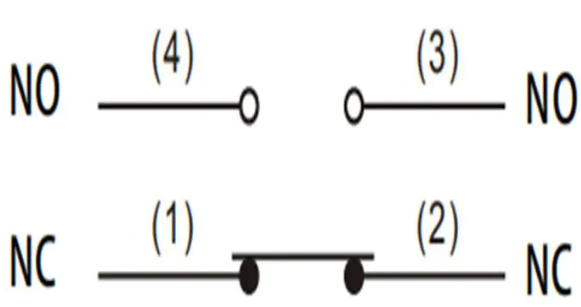

Wiring diagram
