Nanjing KJT Electric Co,.LTD

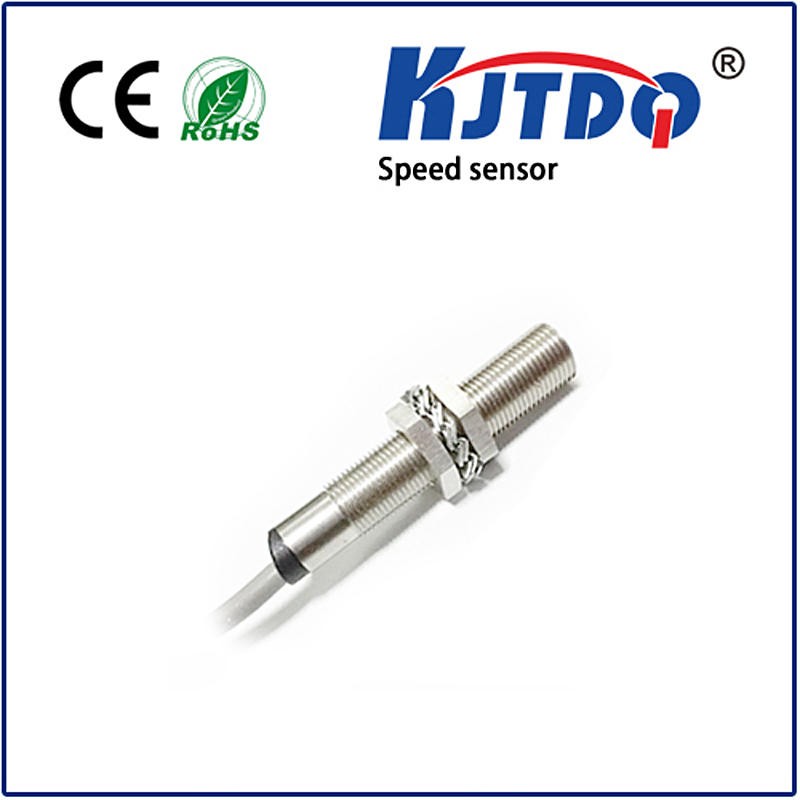

KJT's zero speed Hall effect sensors for measurement of hub speed and shaft revolutions, etc are en¬ Gineered with an internal magnet to switch in the presence of ferrous targets such as gear teeth and blade tips down to absolute zero speed. The sensor detects fluctuations in the magnetic field and can also be configured so the output signal signifies either the presence or absence of a ferromagnetic target(i. e. A gear tooth, shaft feature, etc).
|
Technical parameter |
|
|
Supply voltage: |
8-30 VDC |
|
Operating Frequency: |
0.20kHz |
|
Sensor Head: |
IP68 |
|
Cable outlet or connector |
IP67 |
|
Temperature Range: |
-40 Celsius degree to 125 Celsius degree |
|
Construction: |
Stainless Steel or Plastic Housing |

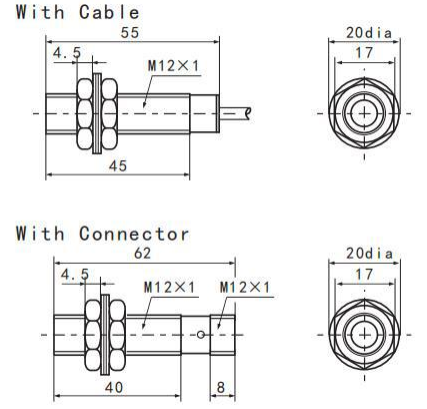

Product Size

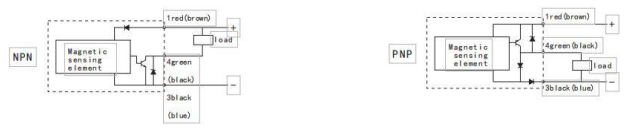

Wiring diagram
