Nanjing KJT Electric Co,.LTD

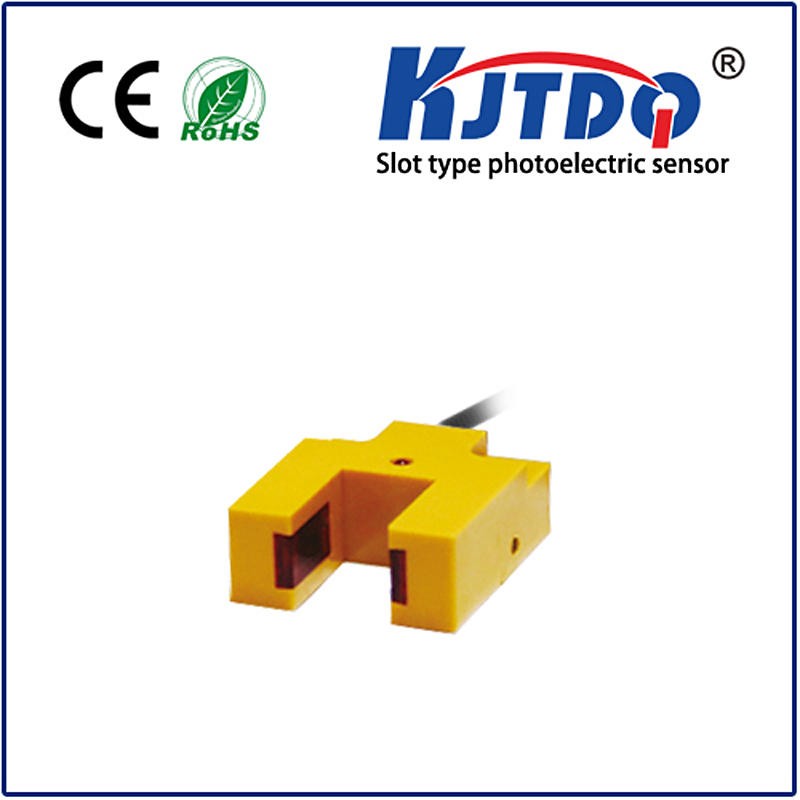

PHOTOELECTRIC SENSOR
KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.
| Technical parameter | |

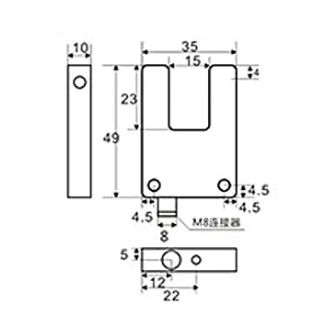

| Size | 49*35*10mm |
| Reflection mode | Through beam |
| Sensing Distance SN [m] | 15mm |
| Housing material | Aluminum alloy |
| Operating voltage | 12-24VDC±10% |
| Current consumption | 15mA Max |
| Load current | 100mA Max at DC 24V |
| Protection circuit | power back connection protection and output short circuit protection |
| Response time | 0.3ms Max |
| Isolation resistance | 20MΩ min (DC500V) |
| Insulation and voltage resistance | AC1000V 60Hz for 60Sec |
| Operating Temperature | -10℃~+50℃(Do not frost or freeze) |
| Ambient Humidity | 35-85%RH relative humidity |
| Storage temperature | -20℃~+60℃(Do not frost or freeze) |
| Store humidity | 35-85%RH relative humidity |
| Output | NO/NC NPN/PNP |
| Protection Degree | IP66 |

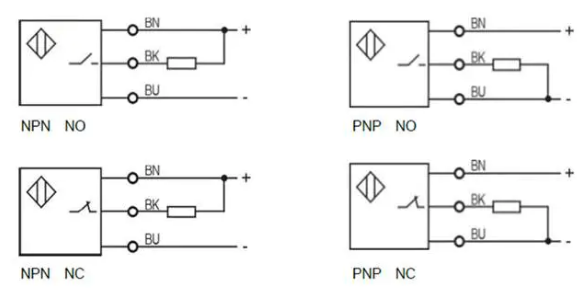

Wiring diagram
