M12 inductive proximity sensor unshielded AC NO NC Sn=4mm IP67

Standard inductive proximity sensor

M12 inductive proximity sensor unshielded AC NO NC Sn=4mm IP67

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ5PCS

Place of OriginNanjing City, Jiangsu Province, China

CertificateCE,RoHS,ISO9001

  • Product Detail

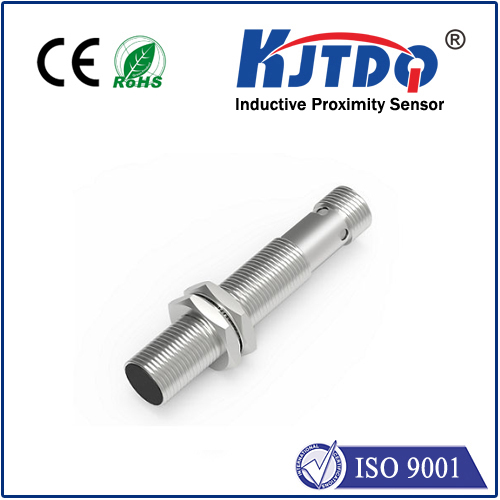

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.


Technical parameter
Size M12*45mm
Mounting Unshielded
Sensing Distance SN [mm] 4 mm
Housing material Brass nickel plated
Indicator With LED
Operating voltage 90-250VAC
Output NO/NC
Ripple <10%
No Load Current <10mA
Max.Load Current 400mA
Leakage Current <1.8mA
Voltage Drop <8VAC AT400mA
Switching Frequency 25 Hz
Response Time 10 ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5%(Sr)
Protection Degree IP67
Operating Temperature -25℃-+70℃
Temperature Drift <10%(Sr)
Short Circuit Protection Yes
Overload Trip Point 120mA
Connection PVC Cable 2M


Product Size


Wiring diagram
