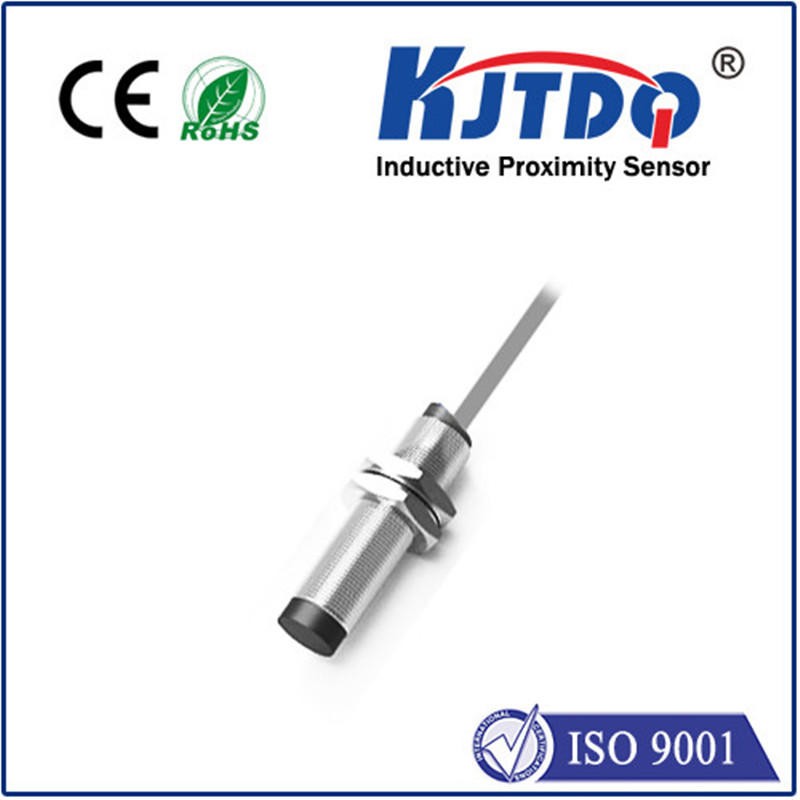

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size	M12*50mm
Mounting	Unshielded
Sensing Distance SN [mm]	6 mm/ 8mm
Housing material	Brass nickel plated
Indicator	With LED
Operating voltage	90-250VAC
Output	NO/NC
Ripple	<10%
No Load Current	<10mA
Max.Load Current	400mA
Leakage Current	<1.8mA
Voltage Drop	<8VAC AT400mA
Switching Frequency	25Hz
Response Time	10ms
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<5%(Sr)
Protection Degree	IP67
Operating Temperature	-25℃-+70℃
Temperature Drift	<10%(Sr)
Short Circuit Protection	Yes
Overload Trip Point	120mA
Housing material	Brass nickel plated

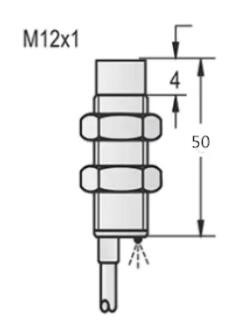

Product Size

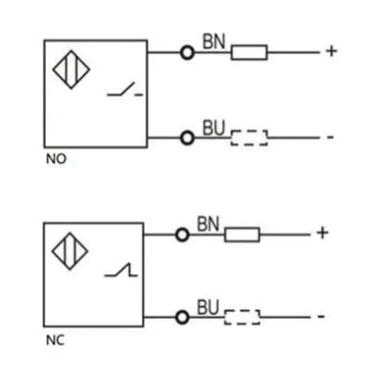

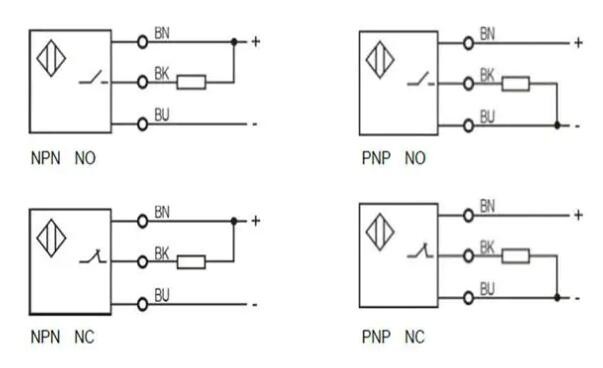

Wiring diagram
