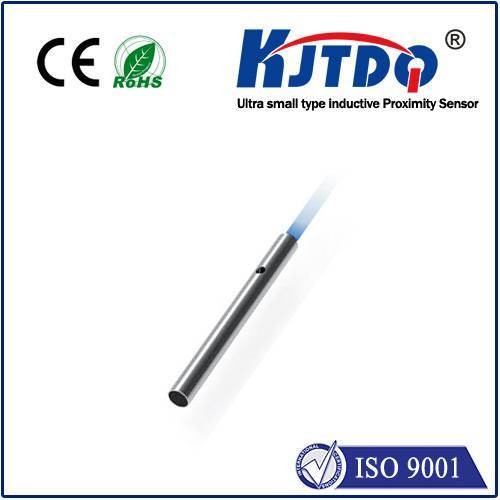

M3 ultra small short inductive proximity sensor shielded unthreaded L=15mm

Ultra Small inductive proximity sensor

M3 ultra small short inductive proximity sensor shielded unthreaded L=15mm

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ5PCS

Place of OriginNanjing City, Jiangsu Province, China

CertificateCE,RoHS,ISO9001

  • Product Detail

ULTRA SMALL PROXIMITY SENSOR
The ultra small proximity sensor is based on the conversion of optical quantity and USES optical signal as the carrier of transformation and transmission.

Technical parameter

Size

J3*15mm

Mounting

Shielded

Sensing Distance SN [mm]

0.6mm

Housing material

Stainless steel

Indicator

With LED

Operating voltage

10-36VDC

Output

PNP/NPN NO/NC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

100mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

24Hz

Response Time

0.1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3%(Sr)

Protection Degree

IP67

Operating Temperature

-25℃-+70℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

200mA

Connection

PVC Cable 2M


Product Size

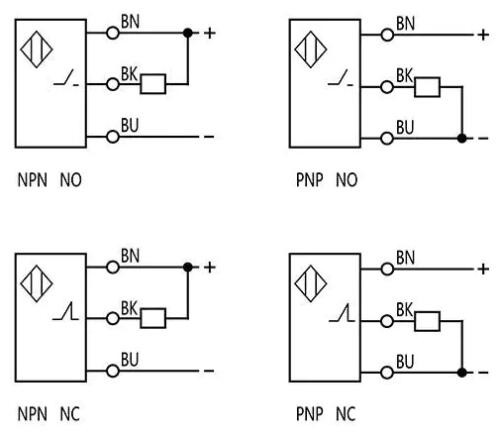

Wiring diagram
