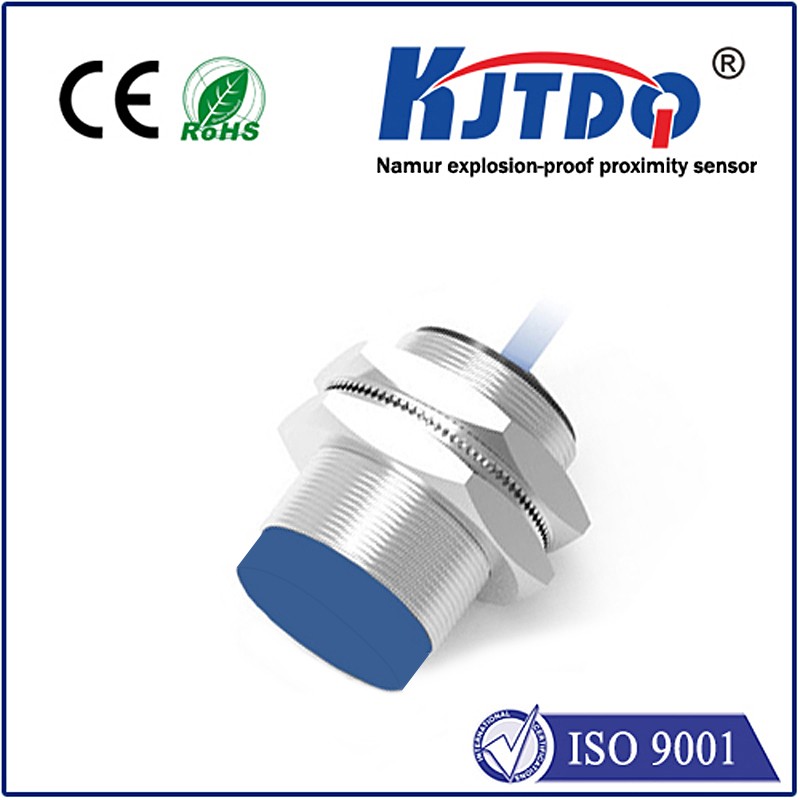

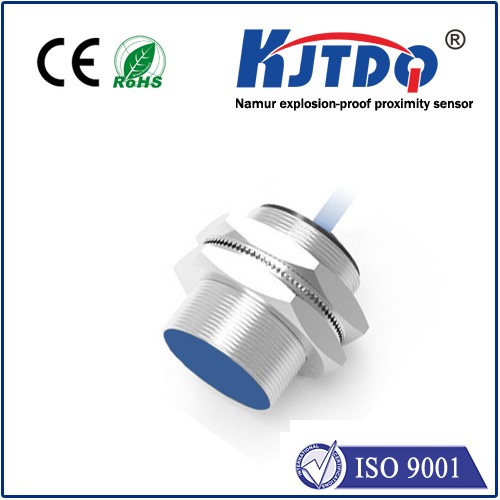

M30 Namur proximity sensor

Namur proximity sensor

M30 Namur proximity sensor

Trade Terms FOB Nanjing/Shanghai
Payment Terms T/T, Western Union, PayPal
Delivery Time 3-15 working days for making sample. 7-20 working days for production
Packing Standard Export Cartons
Shipping By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ 5PCS
Place of Origin Nanjing City, Jiangsu Province, China
Certificate CE,RoHS,ISO9001...
  • Product Detail
Features:

1) Note: Customize for cable length, sensing distance ,housing material and shape.
Metal cylindrical inductive sensor
2) Compact volume
3) High repeat orientation precision
4) Small volume for narrow space
5) Strong protection distribution
6) Vibration-proof, waterproof and oil-proof
7) With short-circuit protection and inverted connecting protection
8) Service life up to one million
9) Adopts envelop glue, temperature resist, oil-proof colophony in it
Products Advantage:
1. Non-contact, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4 to M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function.

Product model KJT-NJ-30M
Installation mode flushed/non flushed
Detection distance 10mm
Outline specification M30*40
No load current > 2.2mA(OFF) />1.1mA(ON)
working voltage 8.2VDC
switching frequency 2KHz
Switching hysteresis < 15% (Sr)
Repetition accuracy < ±1.0%(Sr)
response time 0.05ms
working temperature - 25℃-70℃
temperature drift < ±1%(Sr)
delayed < 10ms
Sensing surface material POM
LED display NO
Degree of protection IP67
