Nanjing KJT Electric Co,.LTD

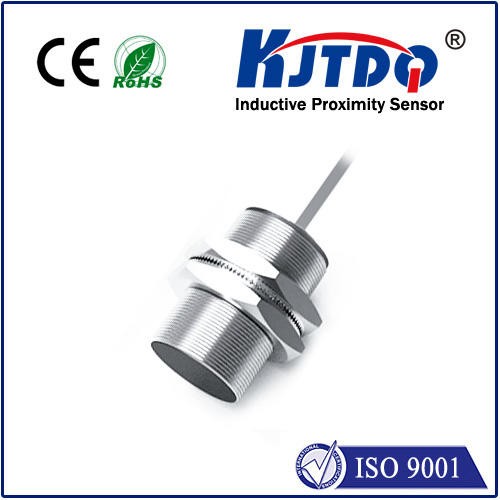

INDUCTIVE PROXIMITY SENSOR
KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.
Technical parameter
Size
J30*55mm
Mounting
Shielded
Sensing Distance SN [mm]
10mm
Housing material
Brass nickel plated
Indicator
With LED
Operating voltage
90-250VAC
Output
NO/NC
Ripple
<1.8mA
No Load Current
5A(20ms)
Max.Load Current
400mA
Leakage Current
<1.8mA
Voltage Drop
<8V
Switching Frequency
100 Hz
Response Time
10ms
Switching Hysteresis
<15%(Sr)
Repeat Accuracy
<3%(Sr)
Protection Degree
IP67
Operating Temperature
-25℃-+70℃
Temperature Drift
<10%(Sr)
Short Circuit Protection
YES
Overload Trip Point
400mA
Connection
PVC Cable 2M

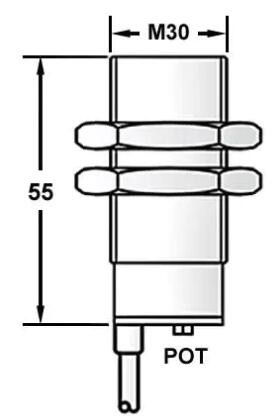

Product Size

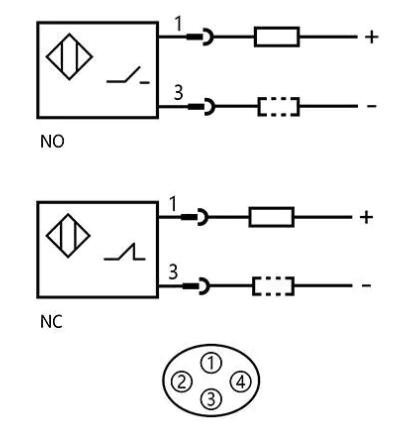

Wiring diagram
