M8 inductive proximity sensor unshielded DC PNP NPN NO NC Sn=4mm/6mm

Standard inductive proximity sensor

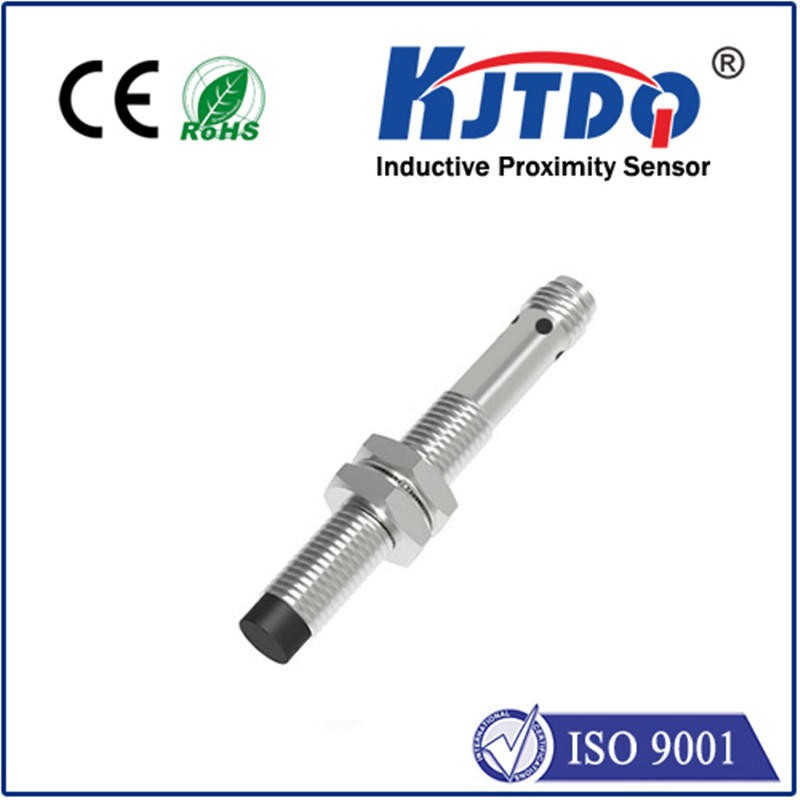

M8 inductive proximity sensor unshielded DC PNP NPN NO NC Sn=4mm/6mm

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ5PCS

Place of OriginNanjing City, Jiangsu Province, China

CertificateCE,RoHS,ISO9001

  • Product Detail

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size M8*45mm
Mounting Unshielded
Sensing Distance SN [mm] 4 mm/ 6mm
Housing material Brass nickel plated
Indicator With LED
Operating voltage 10-36VDC
Output PNP/NPN NO/NC
Ripple <10%
No Load Current <10mA
Max.Load Current 200mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 1K Hz
Response Time 0.1ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3%(Sr)
Protection Degree IP67
Operating Temperature -25℃-+70℃
Temperature Drift <10%(Sr)
Short Circuit Protection Yes
Overload Trip Point 180mA
Connection PVC Cable 2M

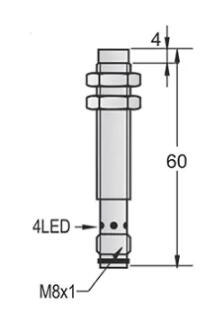

Product Size

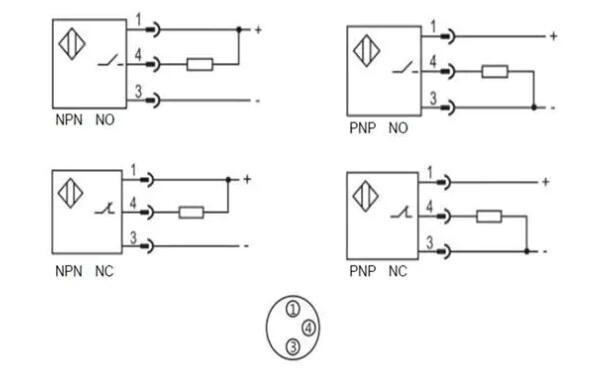

Wiring diagram
