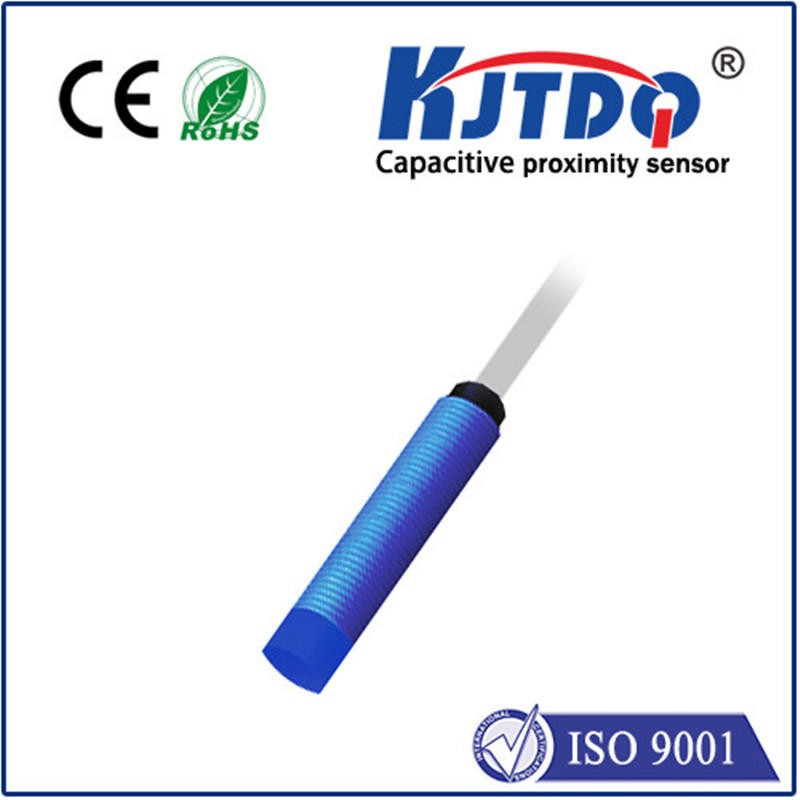

M12 capacitive proximity sensor unshielded DC PNP NPN NO NC Sn=4mm

Capacitive proximity sensor

M12 capacitive proximity sensor unshielded DC PNP NPN NO NC Sn=4mm

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)


Place of OriginNanjing City, Jiangsu Province, China


  • Product Detail


Capacitive proximity sensor can be used without contact to detect any object. Capacitive proximity sensor could detect both of metal objects and non-metallic objects, regardless of color and surface state detected,and  whether the objects be detected is transparent or not,they can test reliably,they have the sensitivity adjustable knobs.Non-metallic containers sealed liquid, powder and other materials can be indirect detection.

Technical parameter
Size M12*63mm
Mounting Unshielded
Sensing Distance SN [mm] 4mm
Housing material ABS
Indicator With LED
Operating voltage 10-36VDC
Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 1K Hz
Response Time 0.2ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3%(Sr)
Protection Degree IP67
Operating Temperature -25℃-+70℃
Temperature Drift <10%(Sr)
Short Circuit Protection Yes
Overload Trip Point 180mA
Connection PVC Cable 2M

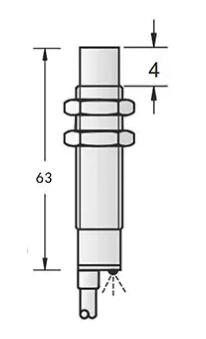

Product Size

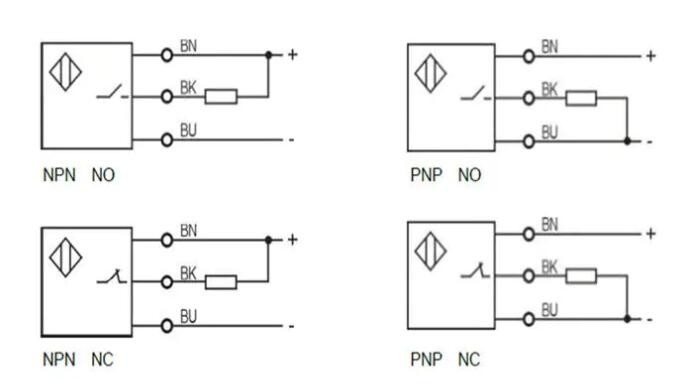

Wiring diagram
