Q31 Laser photoelectric sensor diffuse type

Laser Photoelectric sensor

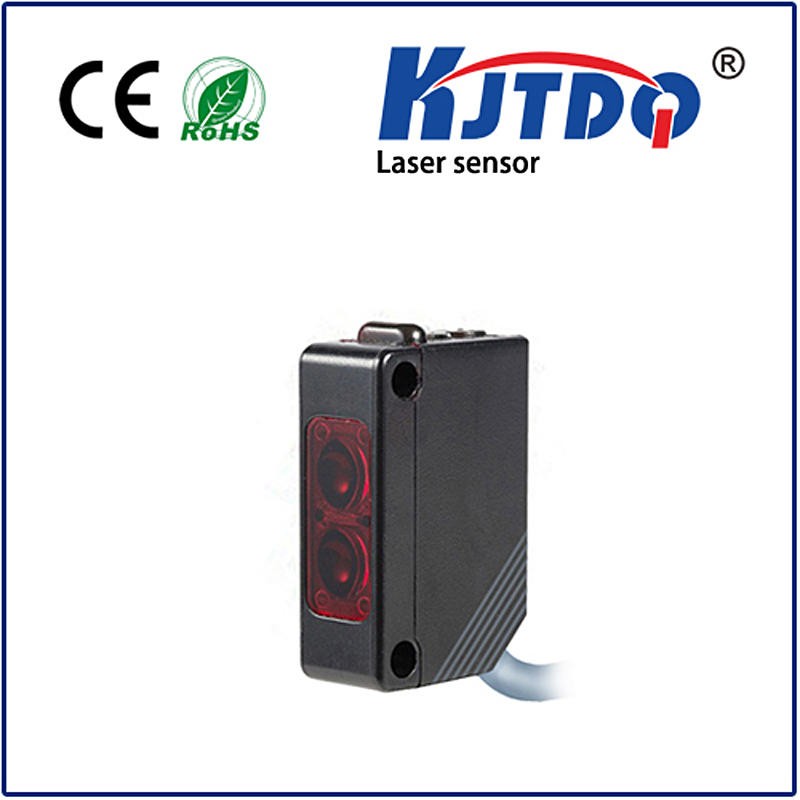

Q31 Laser photoelectric sensor diffuse type

Trade Terms FOB Nanjing/Shanghai
Payment Terms T/T, Western Union, PayPal
Delivery Time 3-15 working days for making sample. 7-20 working days for production.
Packing Standard Export Cartons
Shipping By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ 5PCS
Place of Origin Nanjing City, Jiangsu Province, China
Certificate CE,RoHS,ISO9001...
  • Product Detail
PHOTOELECTRIC SENSOR

KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.

Technical parameter

Size

31*22*11mm

Reflection mode

Diffuse

Sensing Distance SN [m]

200/300mm adjustable

Housing material

Brass nickel plated

Operating voltage

10-36VDC

Switching Hysteresis

<15%

Light source

Infrared light(660nm)

Max Current Output

150mA

No Load Current

<10mA

Voltage Drop

1.5V

Leakage Current

<0.01mA

Frequency

100Hz

Response Time

5ms

Short Circuit Protection

YES

Overload current protection point

180mA

Operating Temperature

0~55℃

Ambient Humidity

35-85%RH

Protection Degree

IP65

Temperature drift

<10%(Sr)

Connection

PVC cable 2m

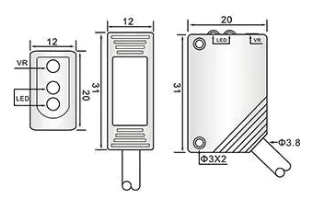

Product Size

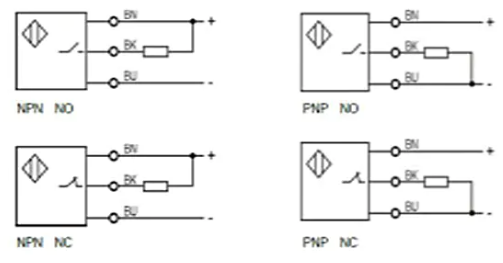

Wiring diagram
