Ring shape proximity sensor ABS NPN PNP NO NC Sn=0-8mm PVC Cable 2M

Ring proximity sensor

Ring proximity sensor ABS NPN PNP NO NC Sn=0-8mm PVC Cable 2M

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)


Place of OriginNanjing City, Jiangsu Province, China


  • Product Detail


KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Sensing Distance SN [mm] 0-8mm
Housing material ABS
Operating voltage 10-36VDC
Current consumption <10mA
Load current <100mA
Hysteresis 2% sensing distance
Response frequency 1KHz
Residual voltage <1.0VDC Load current 100mA
Leak current <0.01mA
Operating Temperature -25℃~+70℃
Protection circuit power back connection protection and output short circuit protection
Protection Degree IP67
Detection object material Iron、cuprum
Connection PVC Cable 2M

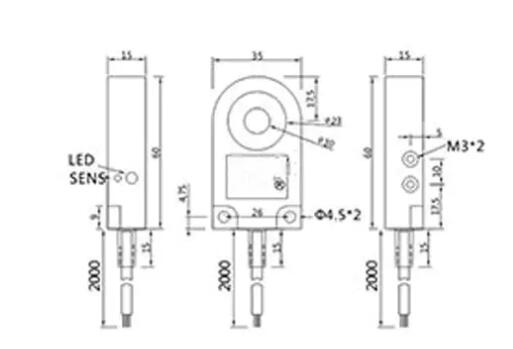

Product Size

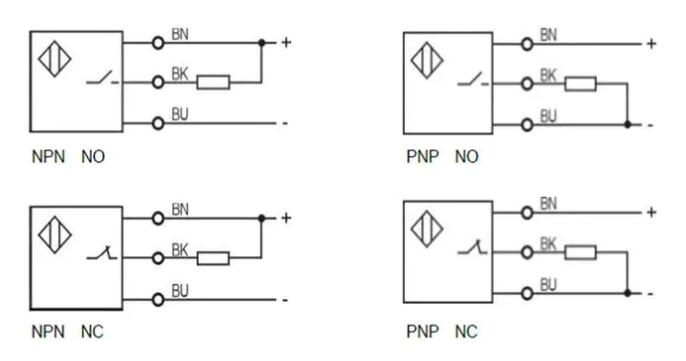

Wiring diagram
