Square proximity sensor ABS PNP NPN NO NC Sn=5mm IP67

Ring proximity sensor

Square proximity sensor ABS PNP NPN NO NC Sn=5mm IP67

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ5PCS

Place of OriginNanjing City, Jiangsu Province, China

CertificateCE,RoHS,ISO9001

  • Product Detail

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Sensing Distance SN [mm] 5mm
Housing material ABS
Operating voltage 10-36VDC
Current consumption <10mA
Load current    <100mA
Output PNP/NPN NO/NC
Hysteresis 2% sensing distance
Response frequency 600Hz
Residual voltage <1.0VDC Load current 100mA
Leak current <0.01mA
Operating Temperature -25℃~+70℃
Operating humidity 35%~85% HR relative humidity
Protection Degree IP67
Connection PVC Cable 2M

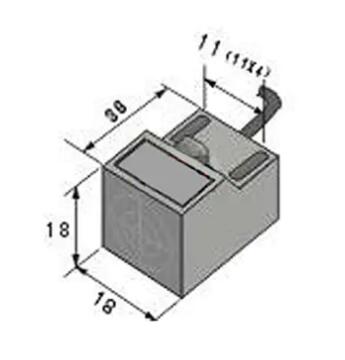

Product Size


Wiring diagram
