SPECIAL SENSOR

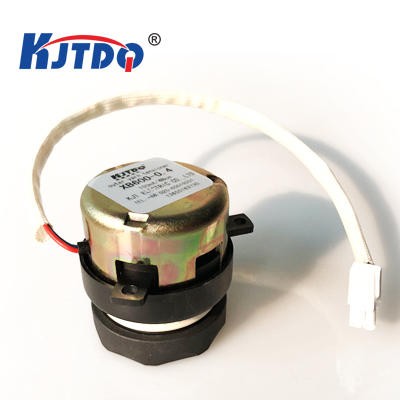

KJT’s textile industry sensor is a series of products specially developed for the textile industry, including capacitor yarn break detector, photoelectric yarn break detector, gear speed switch and tension gauge.This series of sensors is convenient and easy to use, suitable for winding yarn, twisting yarn, spinning yarn and synthetic fiber deformation and other textile processes, and can detect the operation (linear motion) of all kinds of spinning yarn on the spinning machine.In the case of spinning stagnation or breakage, the sensors can inform the control system of the spinning machine in time.
|
Technical parameter |
|
|
Size |
M4*20mm |
|
Reflection mode |
Diffuse |
|
Sensing Distance SN [m] |
100/130mm adjustable |
|
Housing material |
Brass nickel plated |
|
Operating voltage |
10-36VDC |
|
Switching Hysteresis |
<15% |
|
Light source |
Infrared light(660nm) |
|
Max Current Output |
150mA |
|
No Load Current |
<10mA |
|
Voltage Drop |
<1.5V |
|
Leakage Current |
<0.01mA |
|
Frequency |
100Hz |
|
Response Time |
5ms |
|
Short Circuit Protection |
YES |
|
Overload current protection point |
180mA |
|
Operating Temperature |
0-55℃ |
|
Ambient Humidity |
35-85%RH |
|
Protection Degree |
IP65 |
|
Temperature drift |
<10%(Sr) |
|
Connection |
PVC cable 2m |

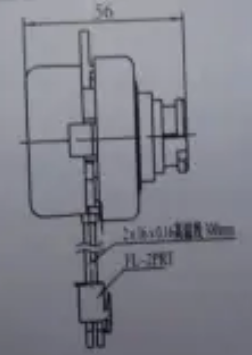

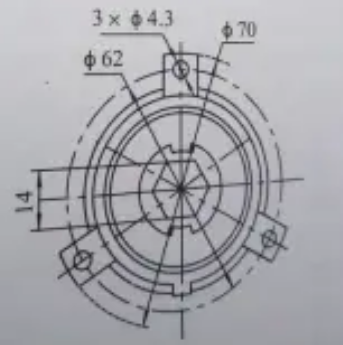

Product Size
Wiring diagram
