Nanjing KJT Electric Co,.LTD
Features:
1) Note: Customize for cable length, sensing distance ,housing material and shape.

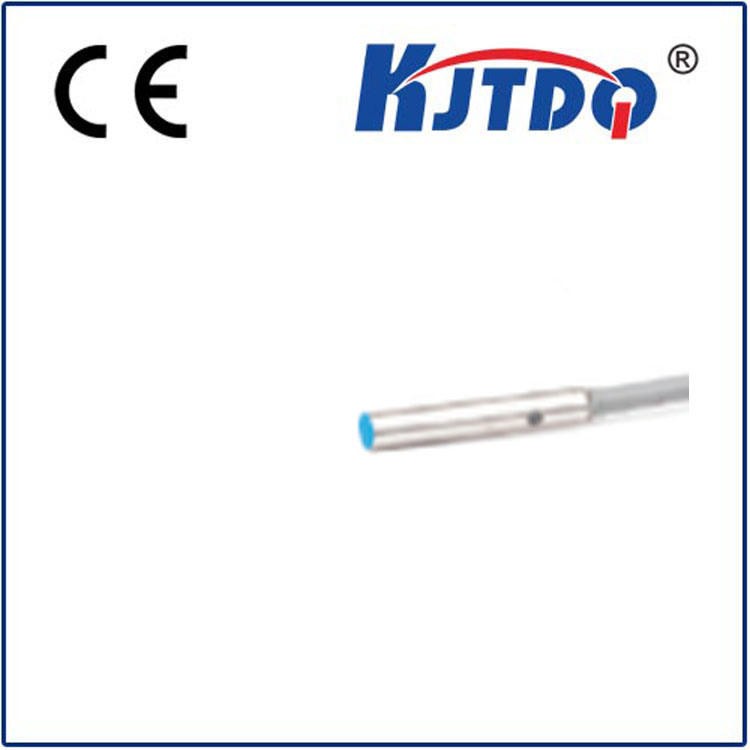

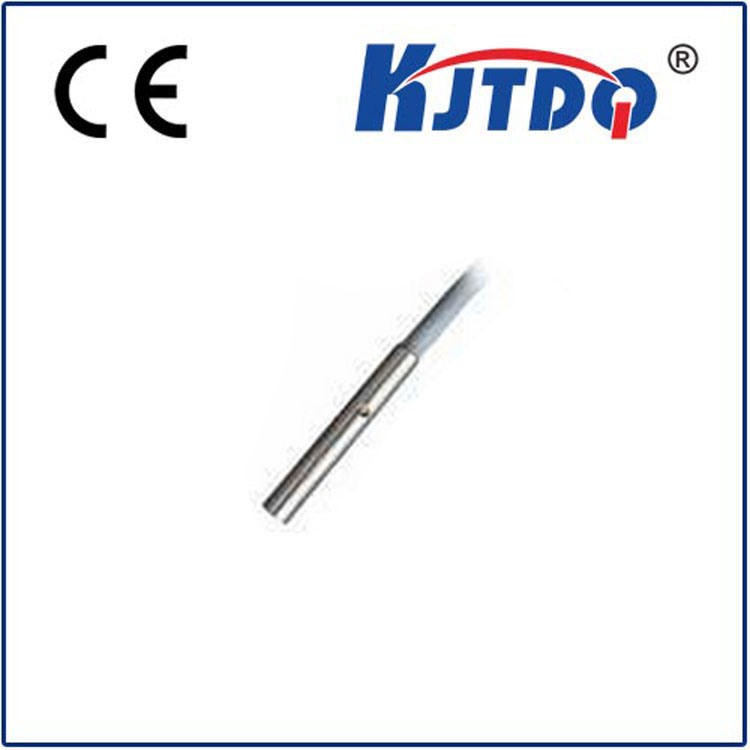

Metal cylinderical inductive sensor
Metal cylinderical inductive sensor
2) Compact volume
3) High repeat orientation precision
4) Small volume for narowwness space
5) Strong protection distribution
6) Dustproof, vibration-proof, waterproof and oil-proof
7) With short-circuit protection and inverted connecting protection
8) Service life up to one million
9) Adopts envelop glue, temperature resist, oil-proof colophony in it
Products Advantage:
1. Contactless, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4-M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function.
Products Advantage:
1. Contactless, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4-M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function.
| Model | KJT-NJK4 |
| Specification(mm) | M4*1*20/ M4*1*20 |
| Mounting | Flushed/ Non-flushed |
| Sensing distance | 0.8mm/ 1mm |
| Supply voltage | 8.2VDC |
| Output | NAMUR |
| Return difference | 1-20% |
| Repeated accuracy | <3% |
| Frequency | 2500Hz/ 2000Hz |
| Output display | / |
| Polarity protection | / |
| Insulation pressure resistance | 500 V/AC,50/60Hz,60s |
| Short-circuit protection | / |
| Ambient temperature | -25~+70C |
| Ambient humidity | 35~95% |
| Protection degree | IP67 |
| Housing material | Stainless steel |
| Connection | 2m PVC Cable |
| Certification | CE |

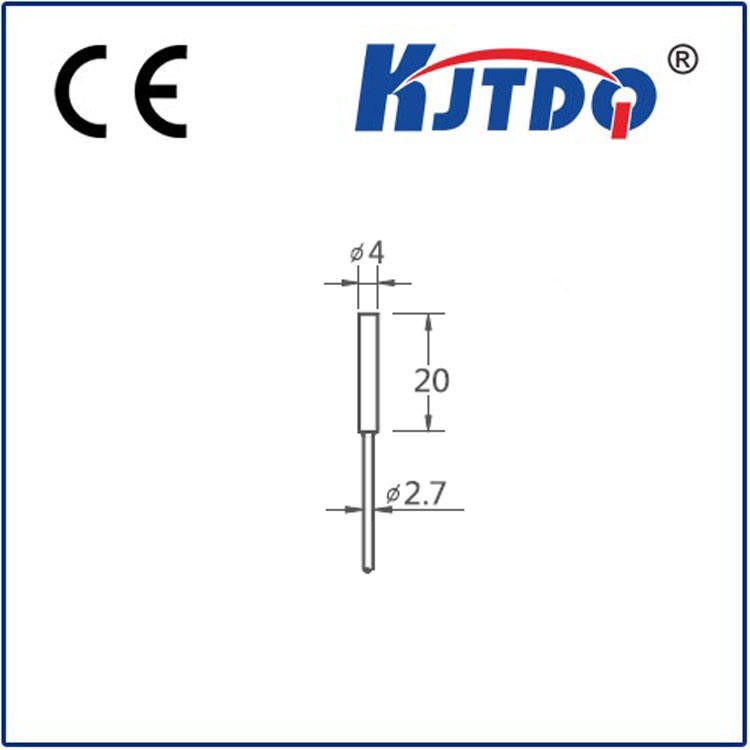

Product Size
