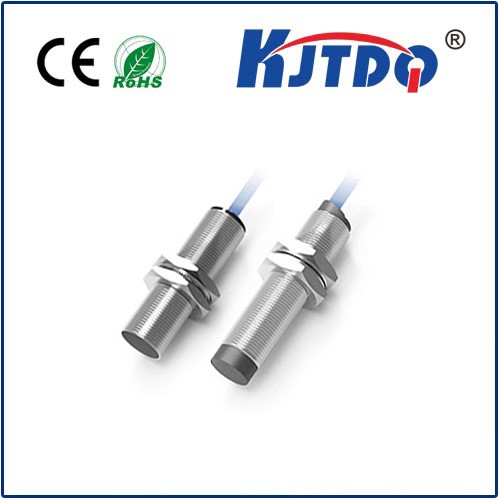

High Quality Analog Output Proximity Inductive Sensor

Product model    KJT-WJ12M
Installation method    Embedded
Sensing distance    0.1-3mm
Form factor    M12*50
Ripple    10%
No load current   <35mA
Working voltage   15-30VDC
Load resistance Current output    4-20mA/400Ω Max.
Voltage output    0-10VDC/≤2KΩ
Current + voltage dual output     0-20mA/400Ω; 0-10VDC/≤2KΩ
Linearity     <5%
Repeatability     0.02mm
Working temperature     0℃-70℃
Temperature drift     <±5%(Sr)
Reverse polarity protection
Output signal     PNP-ANALOG
Switching frequency     500Hz
Sensing surface material     POM
Led display     NO
Protection grade     IP67

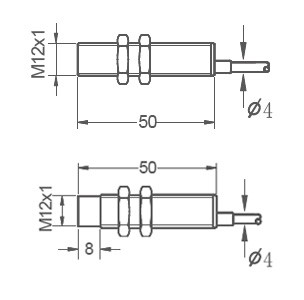

Product Size

Wiring diagram
