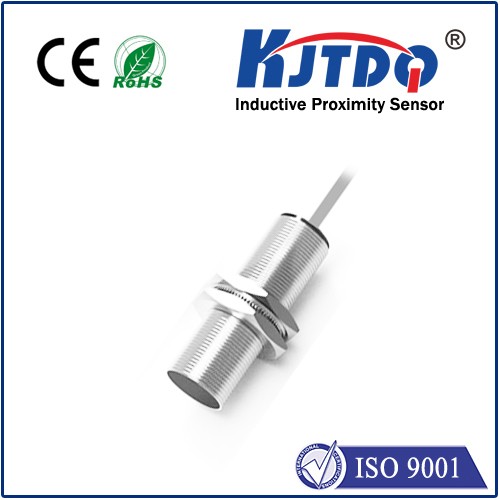

General specifications
|
|
Output type
|
Analog current output
|
|
Installation
|
flush
|
|
Output polarity
|
DC
|
|
Measurement range
|
1 ... 5 mm
|
|
Output type
|
3-wire
|
|
Nominal ratings
|
|
Operating voltage
|
10 ... 30 V DC typ. 20 V DC
|
|
Reverse polarity protection
|
yes
|
|
Repeat accuracy
|
0 ... 80 µm
|
|
No-load supply current
|
≤ 12 mA
|
|
Analog output
|
|
Output type
|
0 ... 20 mA
|
|
Slope of output characteristic
|
5 mA / mm
|
|
Linearity error
|
≤ ± 5 % of full-scale value
|
|
Load resistor
|
≤ 1000 Ω typ. 500 Ω
|
|
Rate of current rise
|
|
|
|
0 ... 20 mA
|
max. 38.9 A/s
|
|
|
20 ... 0 mA
|
max. 13.9 A/s
|
|
Recovery time
|
1 ... 10 ms , typ. 5 ms
|
|
Adjustment tolerance zero point
|
≤ ± 5 % of full-scale value
|
|
Temperature drift
|
≤ ± 0.15 %/K of full-scale value
|
|
Residual ripple
|
± 125 µA
|
|
Compliance with standards and directives
|
|
Standard conformity
|
|
|
|
Standards
|
EN IEC 60947-5-2
|
|
Approvals and certificates
|
|
UL approval
|
cULus Listed, Class 2 Power Source
|
|
CCC approval
|
CCC approval / marking not required for products rated ≤36 V
|
|
Ambient conditions
|
|
Ambient temperature
|
-25 ... 70 °C (-13 ... 158 °F)
|
|
Mechanical specifications
|
|
Connection type
|
cable PVC , 2 m
|
|
Core cross section
|
0.5 mm2
|
|
Housing material
|
brass, nickel-plated
|
|
Sensing face
|
PBT
|
|
Degree of protection
|
IP67
|
|
Cable
|
|
|
|
Cable diameter
|
4.6 mm ± 0.2 mm
|
|
|
Bending radius
|
> 10 x cable diameter
|
|
Dimensions
|
|
|
|
Length
|
60 mm
|
|
|
Diameter
|
18 mm
|
