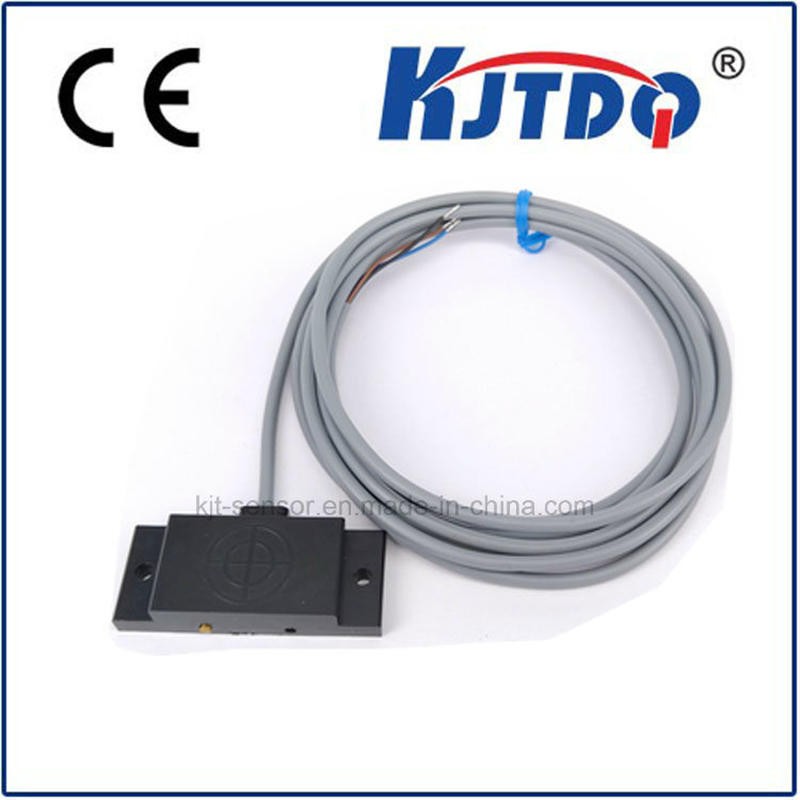

Level Sensor Proximity Capacitive Switch

Material level sensor

Level Sensor Proximity Capacitive Switch

Trade Terms FOB Nanjing/Shanghai
Payment Terms T/T, Western Union, PayPal
Delivery Time 3-15 working days for making sample. 7-20 working days for production.
Packing Standard Export Cartons
Shipping By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ 5PCS
Place of Origin Nanjing City, Jiangsu Province, China
Certificate CE,RoHS,ISO9001
  • Product Detail

Capacitive proximity sensor

Capacitive proximity sensor can be used without contact to detect any object. Capacitive proximity sensor could detect both of metal objects and non-metallic objects, regardless of color and surface state detected,and  whether the objects be detected is transparent or not,they can test reliably,they have the sensitivity adjustable knobs.Non-metallic containers sealed liquid, powder and other materials can be indirect detection.

echnical parameter

Size

M30*87mm

Mounting

Unshielded

Sensing Distance SN [mm]

1-30mm adjustable

Housing material

ABS

Indicator

With LED

Operating voltage

10-36VDC

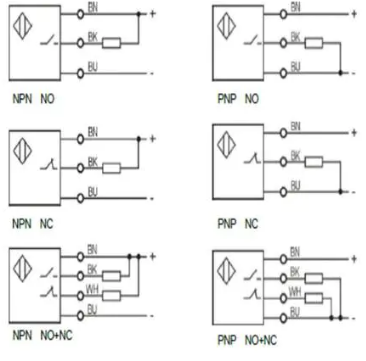

Output

PNP/NPN NO/NC/NO+NC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

150mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

50 Hz

Response Time

1.5ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3%(Sr)

Protection Degree

IP67

Operating Temperature

-25℃-+70℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

Yes

Overload Trip Point

180mA

Connection

PVC Cable 2M


Product Size
