Features:

Features:

1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it

Mounting	Flush  / Non-Flush
SN	2mm / 4mm
Power supply	10-36V DC

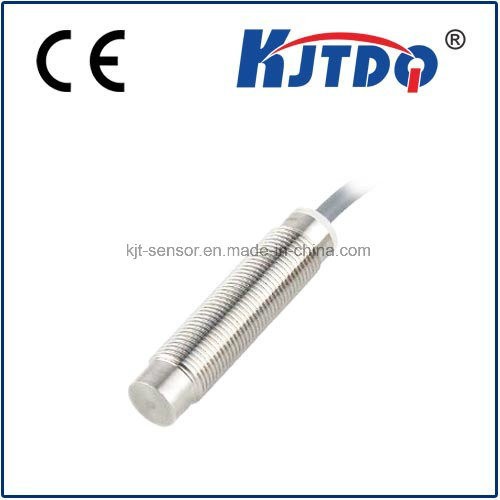

Housing size	M12*60    M12*65
Thread size	M12*1*45

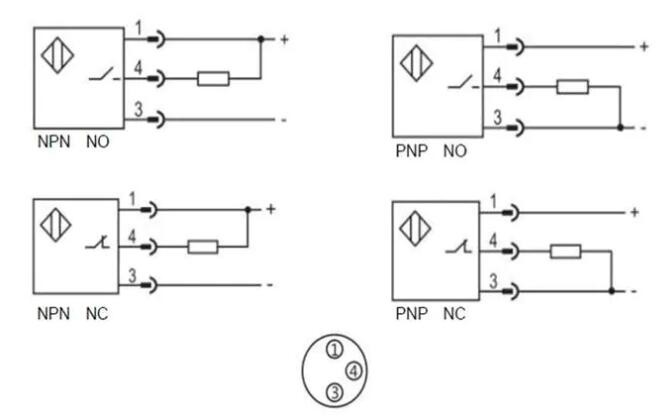

Output	NPN/PNP     NO/NC
Temperature drift	≤±10%
Hysteresis	1-20%
Repeat accuracy	≤5%
Load current	≤150mA
Residual voltage	≤2.5V
Consumption current	≤10mA
Protection circuit	surge, overload, short-circuit,   reverse polarity
Indicator	Yellow LED
Ambient temp.	-25 ~ +70ºC
Ambient RH	35-95%
Frequency	800Hz
Protection degree	IP67
Housing material	Stainless steel
Connection	PVC Cable 2m
