Nanjing KJT Electric Co,.LTD
Features:
1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form :PNP NO,PNP NC,NPN NO,NPN NC,etc
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it
11)Long distance sensing:the detailed sensing distance your requirements.
11)Long distance sensing:the detailed sensing distance your requirements.
Mounting
| Flush / Non-Flush | |
| SN | 2-8 mm / 4-12 mm |
| Power supply | 10-36V DC |
| Housing size | M12*68 |
| Thread size | M12*1*42 |
| Output | NPN/PNP NO/NC |
| Temperature drift | ≤±10% |
| Hysteresis | 1-20% |
| Repeat accuracy | ≤5% |
| Load current | ≤200mA |
| Residual voltage | ≤2.5V |
| Consumption current | ≤10mA |
| Protection circuit | surge, overload, short-circuit, reverse polarity |
| Indicator | Yellow LED |
| Ambient temp. | -25 ~ 70ºC |
| Ambient RH | 35-95% |
| Frequency | 1000Hz |
| Protection degree | IP67 |
| Housing material | PTFE |
| Connection | M12 connector |

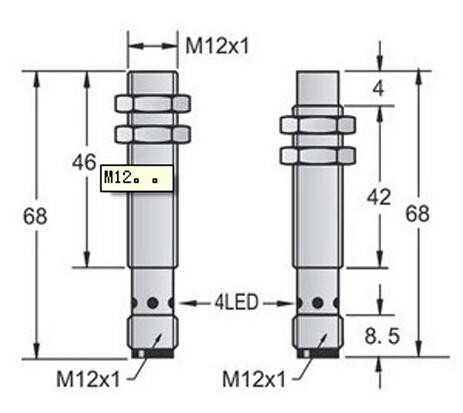

Product Size

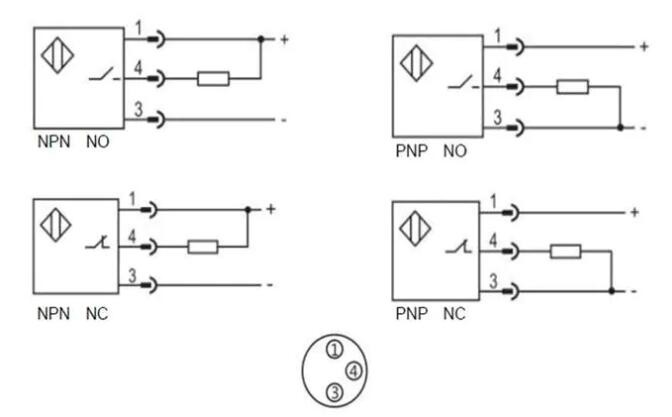

Wiring diagram
