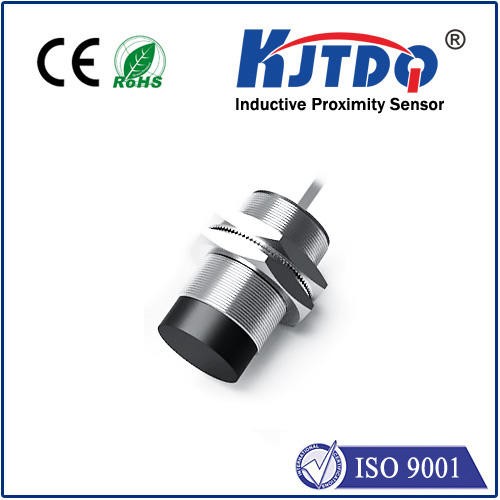

M30 inductive proximity sensor unshielded AC NO NC long distance

Long Distance Proximity Sensor

M30 inductive proximity sensor unshielded AC NO NC long distance

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ5PCS

Place of OriginNanjing City, Jiangsu Province, China

CertificateCE,RoHS,ISO9001

  • Product Detail

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter

Size

J30*55mm

Mounting

Unshielded

Sensing Distance SN [mm]

20mm/25mm

Housing material

Brass nickel plated

Indicator

With LED

Operating voltage

90-250VAC

Output

NO/NC

Ripple

<1.8mA

No Load Current

5A(20ms)

Max.Load Current

400mA

Leakage Current

<1.8mA

Voltage Drop

<8V

Switching Frequency

400 Hz

Response Time

10ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3%(Sr)

Protection Degree

IP67

Operating Temperature

-25℃-+70℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

400mA

Connection

PVC Cable 2M

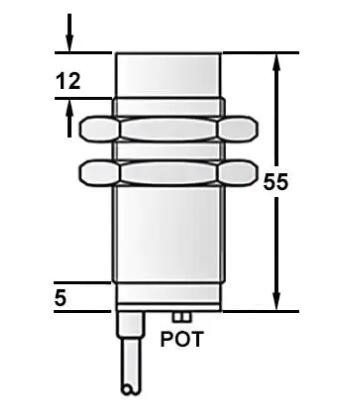

Product Size

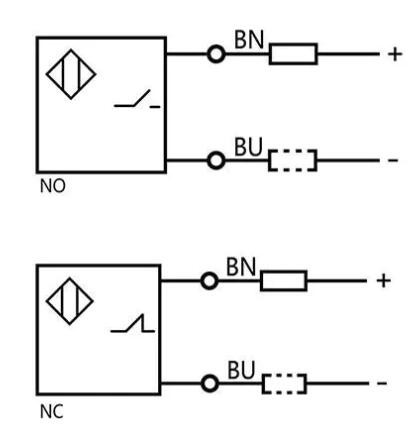

Wiring diagram
