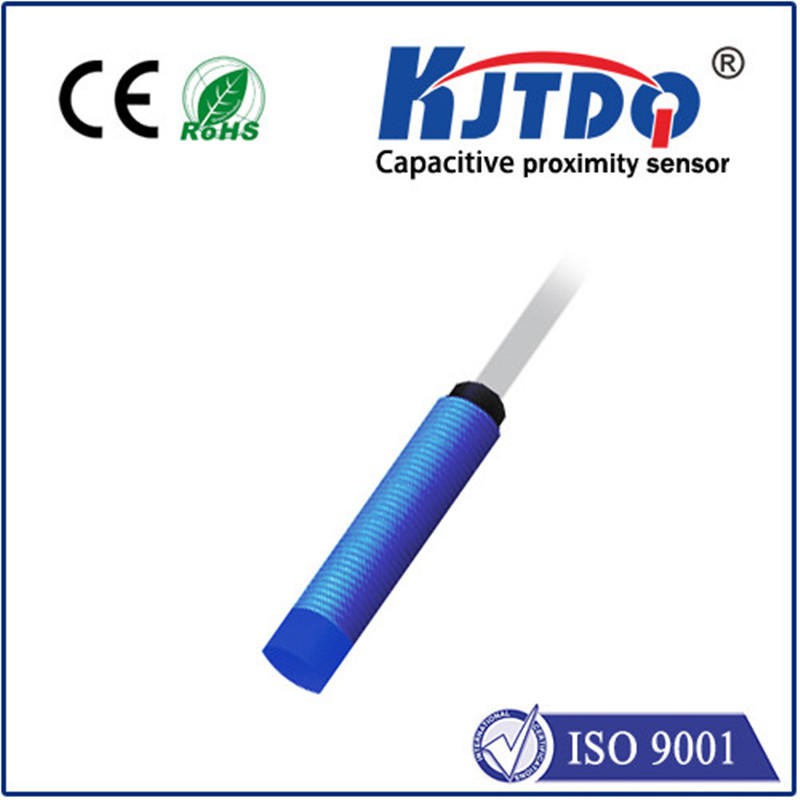

CAPACTIVE PROXIMITY SENSOR
Capacitive proximity sensor can be used without contact to detect any object. Capacitive proximity sensor could detect both of metal objects and non-metallic objects, regardless of color and surface state detected,and whether the objects be detected is transparent or not,they can test reliably,they have the sensitivity adjustable knobs.Non-metallic containers sealed liquid, powder and other materials can be indirect detection.
|
Technical parameter |
|
|
Size |
M12*58mm |
|
Mounting |
Unshielded |
|
Sensing Distance SN [mm] |
1-6mm |
|
Housing material |
ABS |
|
Indicator |
With LED |
|
Operating voltage |
10-36VDC |
|
Output |
PNP/NPN NO/NC |
|
Ripple |
<10% |
|
No Load Current |
<10mA |
|
Max.Load Current |
150mA |
|
Leakage Current |
<0.01mA |
|
Voltage Drop |
<1.5V |
|
Switching Frequency |
1K Hz |
|
Response Time |
0.2ms |
|
Switching Hysteresis |
<15%(Sr) |
|
Repeat Accuracy |
<3%(Sr) |
|
Protection Degree |
IP67 |
|
Operating Temperature |
-25℃-+70℃ |
|
Temperature Drift |
<10%(Sr) |
|
Short Circuit Protection |
Yes |
|
Overload Trip Point |
180mA |
|
Connection |
PVC Cable 2M |

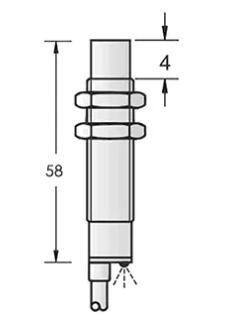

Product Size

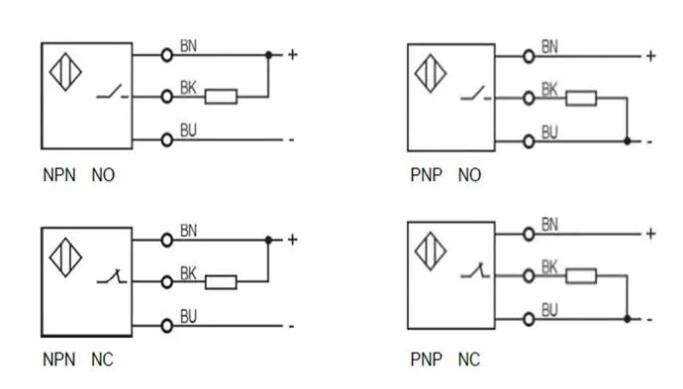

Wiring diagram
