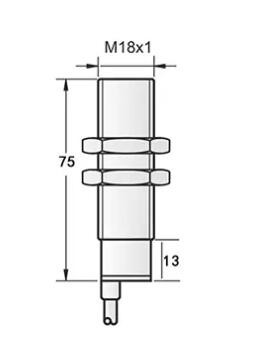

Size

M18*75mm

Mounting

Shielded

Sensing Distance SN [mm]

1-8mm adjustable

Housing material

ABS

Indicator

With LED

Operating voltage

10-36VDC

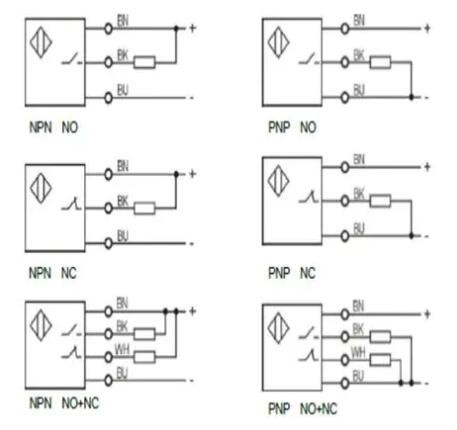

Output

PNP/NPN NO/NC/NO+NC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

150mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

50 Hz

Response Time

1.5ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3%(Sr)

Protection Degree

IP67

Operating Temperature

-25℃-+70℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

Yes

Overload Trip Point

180mA

Connection

PVC Cable 2M
