M12 high pressure proximity sensor shielded NO NC with M12 connector

High pressure proximity sensor

M12 high pressure proximity sensor shielded NO NC with M12 connector

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ5PCS

Place of OriginNanjing City, Jiangsu Province, China

CertificateCE,RoHS,ISO9001

  • Product Detail

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter

Size

M12*50mm

Mounting

Shielded

Sensing Distance SN [mm]

1.5mm

Housing material

Stainless steel

Pressure endurable

500Bar

Operating voltage

10-36VDC

Output

PNP/NPN NO/NC/ NO+NC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

200mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

1KHz

Response Time

0.5ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3%(Sr)/<3%(Sr)/<5%(Sr)

Protection Degree

IP68

Operating Temperature

-25℃-+85℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

200mA

Connection

With M12 4 pin connector

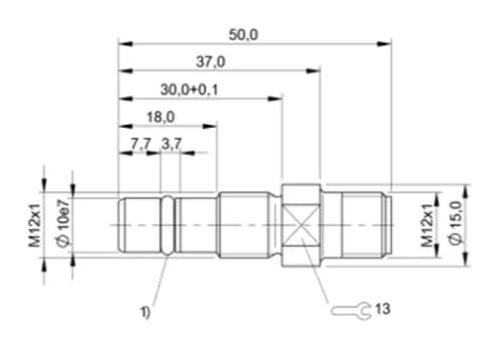

Product Size

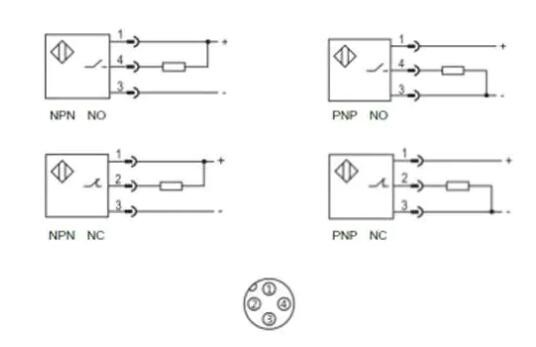

Wiring diagram
