M18 photoelectric sensor through beam PNP NPN NO NC NO+NC Sn=15m

Cylindrical Photoelectric sensor

M18 photoelectric sensor through beam PNP NPN NO NC NO+NC Sn=15m

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)


Place of OriginNanjing City, Jiangsu Province, China


  • Product Detail

KJTs photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.

Technical parameter
Size M18*73mm
Reflection mode Through beam
Sensing Distance SN [m] 15m
Housing material Brass nickel plated
Operating voltage 10-36VDC
Switching Hysteresis <15%
Light source Infrared light(880nm)
Max Current Output 200mA
No Load Current <30mA
Voltage Drop <2.5V
Leakage Current <1.8mA
Sensitivity Control Trimmer 1tum
Response Time 5ms
Short Circuit Protection YES
Electricity Protection YES
Operating Temperature 0-55℃
Ambient Humidity 35-85%RH
Protection Degree IP67
Sensing Object Size 20*500px White board
Connection PVC Cable 2M

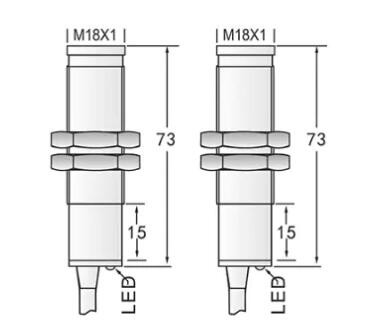

Product Size

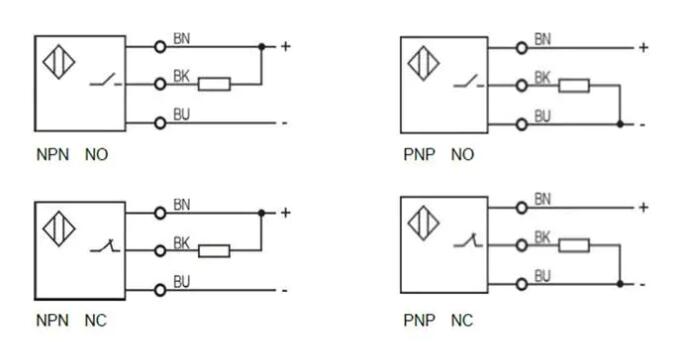

Wiring diagram
