PNP NPN Small Type Photoelectric Laser Beam Sensor Switch

Small photoelectric sensor

PNP NPN Small Type Photoelectric Laser Beam Sensor Switch

Trade Terms FOB
Payment Terms L/C,T/T,D/P,Western Union,Paypal
Delivery Time 5-13 work days
Packing Bags
MOQ 5pcs
Place of Origin Nanjing
Certificate CE
  • Product Detail
PHOTOELECTRIC SENSOR

KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.

Technical parameter

Size

J30*55mm

Mounting

Unshielded

Sensing Distance SN [mm]

20mm/25mm

Housing material

Brass nickel plated

Operating voltage

90-250VAC

Switching Hysteresis

<15%

Light source

Infrared light(660nm)

Max Current Output

400mA

No Load Current

5A(20ms)

Voltage Drop

<8V

Leakage Current

<1.8mA

Frequency

100Hz

Response Time

5ms

Short Circuit Protection

YES

Overload current protection point

180mA

Operating Temperature

-25℃-+70℃

Ambient Humidity

35-85%RH

Protection Degree

IP65

Temperature drift

<10%(Sr)

Connection

PVC cable 2m

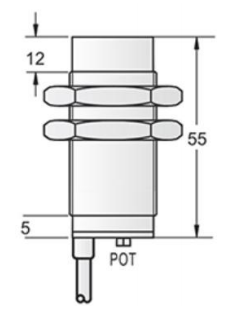

Product Size

Wiring diagram
