KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.
| Technical parameter | |

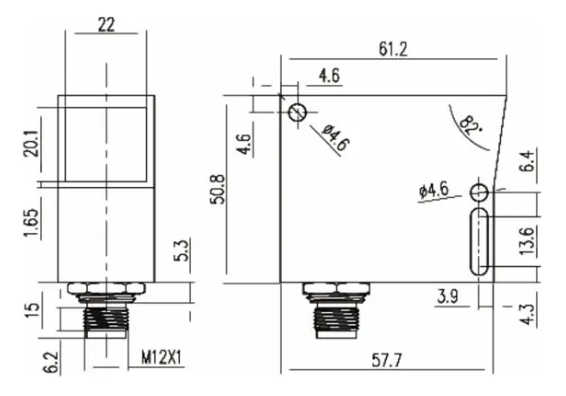

| Size | 51*61*25mm |
| Function | Contrast detection |
| Sensing Distance SN [mm] | 28mm |
| Housing material | ABS |
| Light source | Visible light |
| Spot size | 3mm@28mm |
| Focus point | 28mm+/-3mm |
| Output | Analog output(0-5V) |
| Residual voltage | <2.5V |
| Operating voltage | 12-24VDC |
| Load current | Max.100mA |
| Consumption current | Max.60mA |
| Response Time | Max.25us |
| Switching frequency | 40KHz |
| Protection circuit | Short circuit,overload,reverse polarity protection |
| Operating temperature | -10-55℃ |
| Storage temperature | -20-70℃ |
| Protection Degree | IP65 |
| Power supply indicator | Green LED |
| Output indicator | Yellow LED |
| Teaching indicator | Yellow/Green LED alternate |
| Adjusting mode | MARK&BKGD key |
| Connection | M12 connector 4 pin |

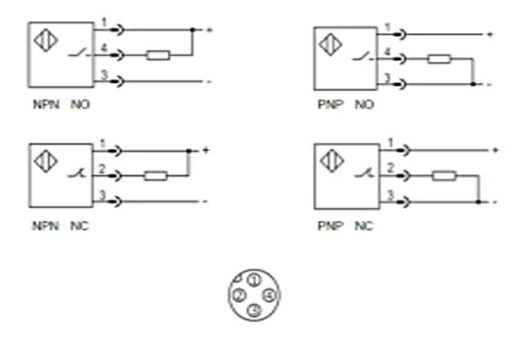

Wiring diagram
