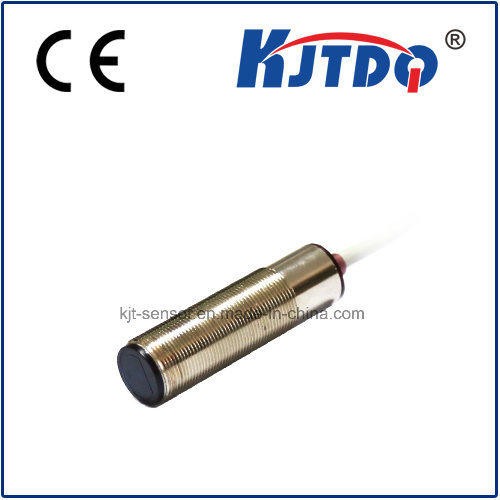

High Temperature Photoelectric Diffuse Sensor switch

High temperature Photoelectric sensor

High Temperature Photoelectric Diffuse Sensor switch

Trade Terms FOB
Payment Terms L/C,T/T,D/P,Western Union,Paypal
Delivery Time 5-13 work days
Packing Bags
MOQ 5pcs
Place of Origin Nanjing
Certificate CE
  • Product Detail

Housing size [mm]      18*1*77 mm
   Mode      Diffuse/Retro reflection
   SN [mm]      100~700mm,  2m
   Light source      Infrared LED (880nm)
   Output      NPN/PNP NO/NC
   Power supply      10-36VDC
   Protection degree      IP65
   Response time      <3 ms
   Hysteresis      3-20%
   Repeat accuracy      ≤5%
   Load current      ≤200mA
   Residual voltage      ≤2.5V
   Consumption current      ≤25mA
   Protection circuit      Surge, reverse  polarity and
     short-circuit
   Indicator      Yellow LED
   Ambient temp.[ºC]      -25~150ºC
   Ambient RH      35-95%
   Housing material      ABS/PC
   Connection     PVC cable 2 m

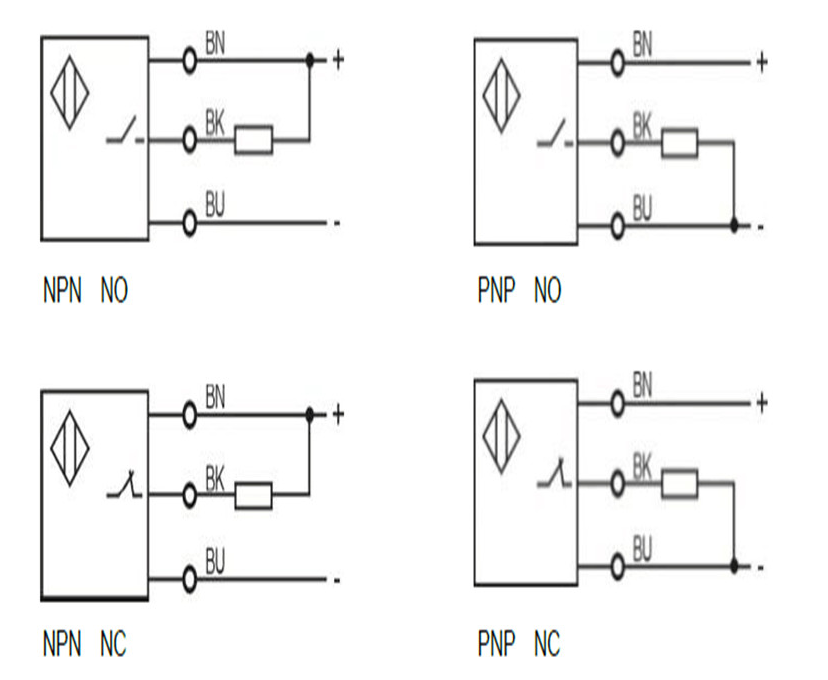

Wiring diagram
