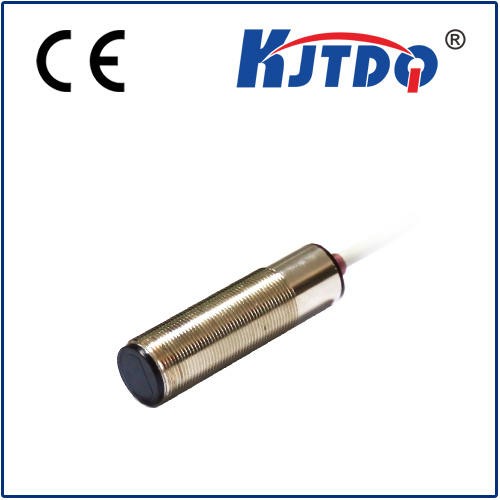

M18 Long Distance PNP NPN Photoelectric Sensor Switch

Long range Photoelectric sensor

M18 Long Distance PNP NPN Photoelectric Sensor Switch

Trade Terms FOB
Payment Terms L/C,T/T,D/P,Western Union,Paypal
Delivery Time 5-13 work days
Packing Bags
MOQ 5pcs
Place of Origin Nanjing
Certificate CE
  • Product Detail
PHOTOELECTRIC SENSOR

KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.

Housing size [mm]      M18*63
   Thread size [mm]      M18*1*45
   Mode      Diffuse reflection
   SN [mm]      100mm,400mm
   Light source      Infrared LED (880nm)
   Output      NPN/PNP NO/NC
   Power supply      10-36VDC
   Protection degree      IP67
   Response time      Max,8.2ms
   Hysteresis      3-20%
   Repeat accuracy      ≤5%
   Load current      ≤200mA
   Residual voltage      ≤2.5V
   Consumption current      ≤25mA
   Protection circuit      Surge, reverse  polarity and
     short-circuit
   Indicator      Yellow LED
   Ambient temp.[ºC]      -15~55ºC
   Ambient RH      35-95%
   Housing material      Nickel-copper Alloy
   Connection      PVC Cable 2m

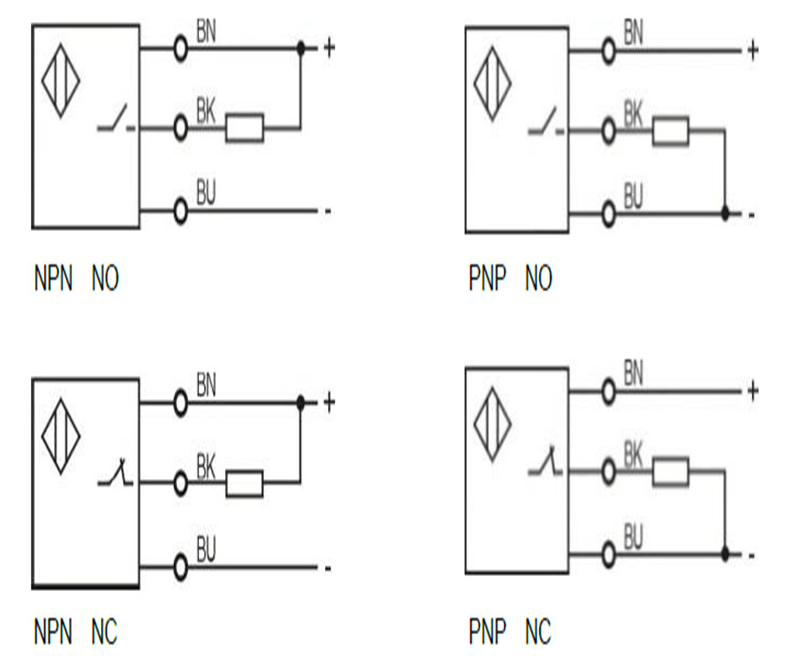

Wiring diagram
