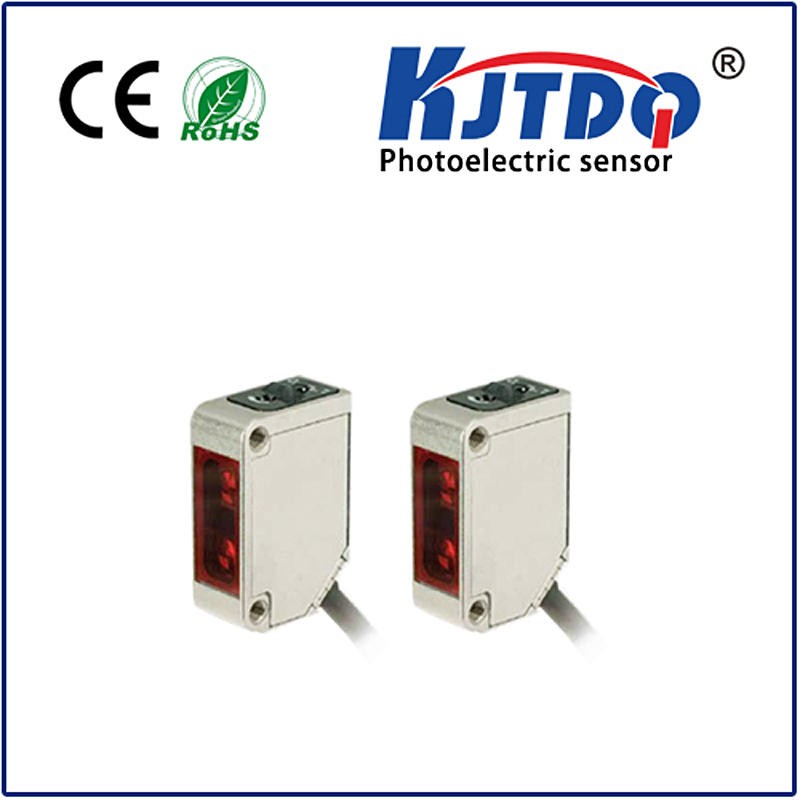

FS30 square photoelectric sensor through beam NPN PNP NO NC Sn=5m

Square type Photoelectric sensor

FS30 square photoelectric sensor through beam NPN PNP NO NC Sn=5m

Trade Terms FOB Nanjing/Shanghai
Payment Terms T/T, Western Union, PayPal
Delivery Time 3-15 working days for making sample. 7-20 working days for production.
Packing Standard Export Cartons
Shipping By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ 5PCS
Place of Origin Nanjing City, Jiangsu Province, China
Certificate CE,RoHS,ISO9001
  • Product Detail
PHOTOELECTRIC SENSOR

KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.

Technical parameter
Size 30*22*11mm
Reflection mode Through beam
Sensing Distance SN [m] 5m
Housing material ABS
Operating voltage 10-36VDC
Switching Hysteresis <15%
Light source   Infrared light(880nm)
Max Current Output 200mA
No Load Current <30mA
Voltage Drop <2.5V
Leakage Current <1.8mA
Sensitivity Control Trimmer 1tum
Response Time 5ms
Short Circuit Protection YES
Electricity Protection YES
Operating Temperature 0-55℃
Ambient Humidity 35-85%RH
Protection Degree IP55
Sensing Object Size 20*500px White board
Connection PVC Cable 2M

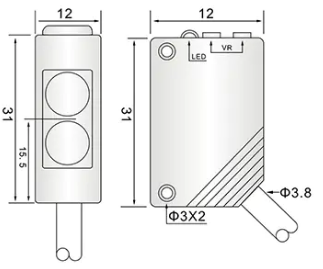

Product Size

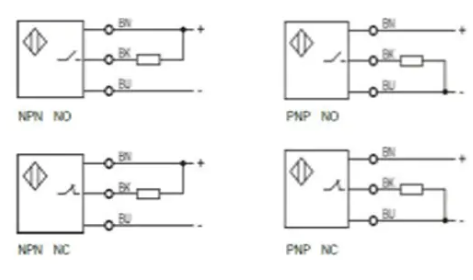

Wiring diagram
