M12 high pressure proximity sensor shielded NO NC NO NC Sn 1 5mm size M12 47mm

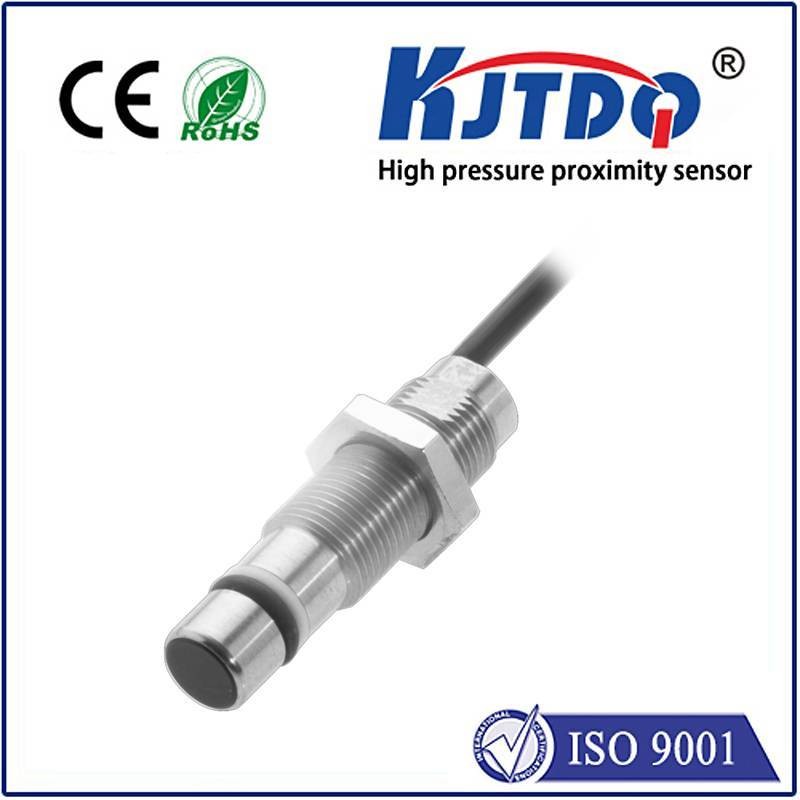

High pressure proximity sensor

M12 high pressure proximity sensor shielded NO NC NO+NC Sn=1.5mm size M12*47mm

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ5PCS

Place of OriginNanjing City, Jiangsu Province, China

CertificateCE,RoHS,ISO9001

  • Product Detail

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size M12*47mm
Mounting Shielded
Sensing Distance SN [mm] 1.5mm
Housing material Stainless steel
Pressure endurable 500Bar
Operating voltage 10-36VDC
Output PNP/NPN NO/NC/ NO+NC
Ripple <10%
No Load Current <10mA
Max.Load Current 200mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 1KHz
Response Time 0.5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3%(Sr)/<3%(Sr)/<5%(Sr)
Protection Degree IP68
Operating Temperature -25℃-+85℃
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 200mA
Connection With M12 4 pin connector

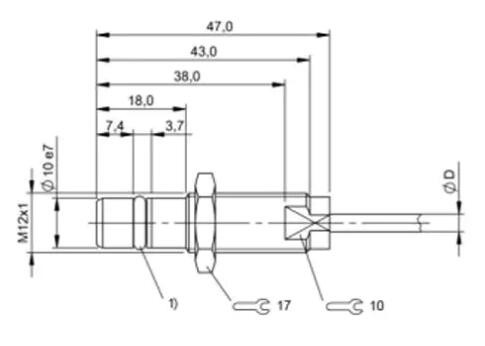

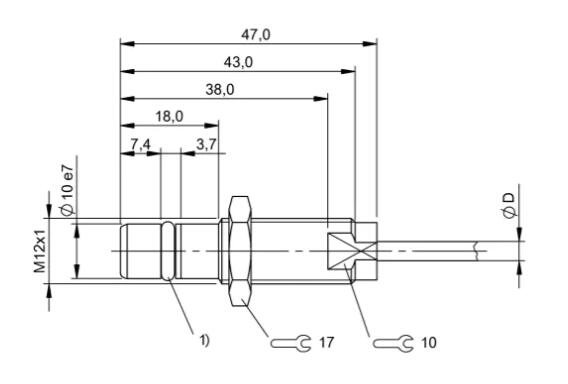

Product Size

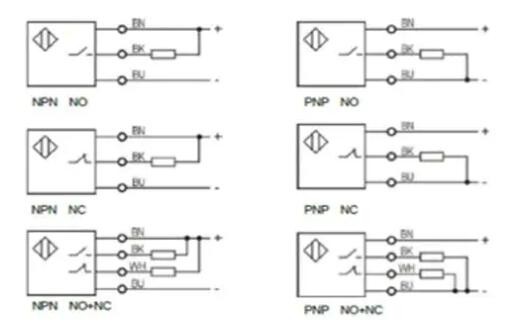

Wiring diagram
