KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.
|
Technical parameter |
|
|
Size |
M18*50mm |
|
Reflection mode |
Through beam |
|
Sensing Distance SN [m] |
70m |
|
Housing material |
Brass nickel plated |
|
Operating voltage |
10-36VDC |
|
Switching Hysteresis |
<15% |
|
Light source |
Infrared light(660nm) |
|
Max Current Output |
150mA |
|
No Load Current |
<10mA |
|
Voltage Drop |
<1.5V |
|
Leakage Current |
<0.01mA |
|
Frequency |
100Hz |
|
Response Time |
5ms |
|
Short Circuit Protection |
YES |
|
Overload current protection point |
180mA |
|
Operating Temperature |
0-55℃ |
|
Ambient Humidity |
35-85%RH |
|
Protection Degree |
IP65 |
|
Temperature drift |
<10%(Sr) |
|
Connection |
PVC cable 2m |

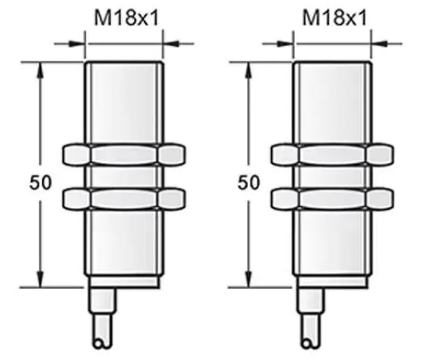

Product Size

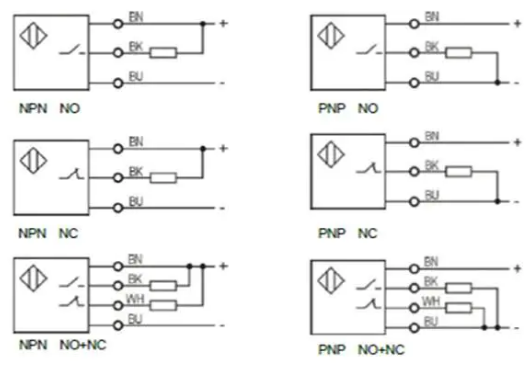

Wiring diagram
