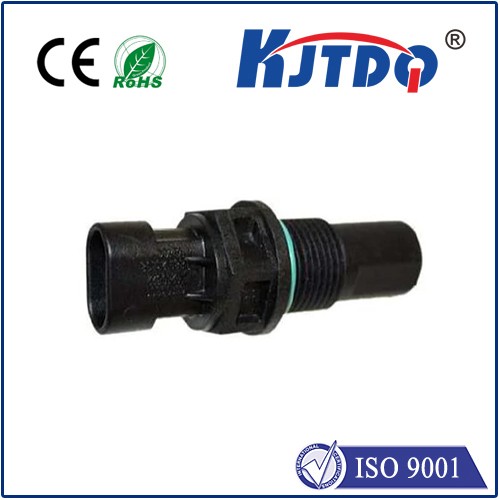

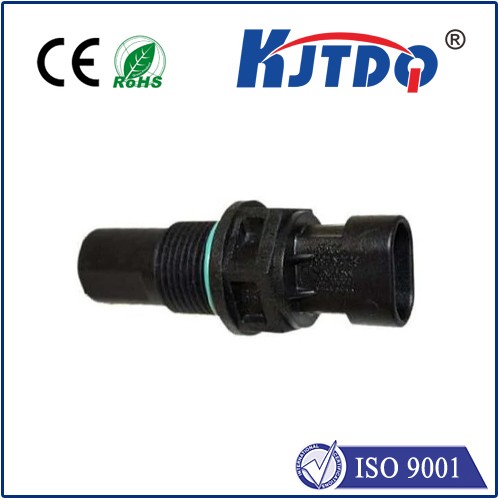

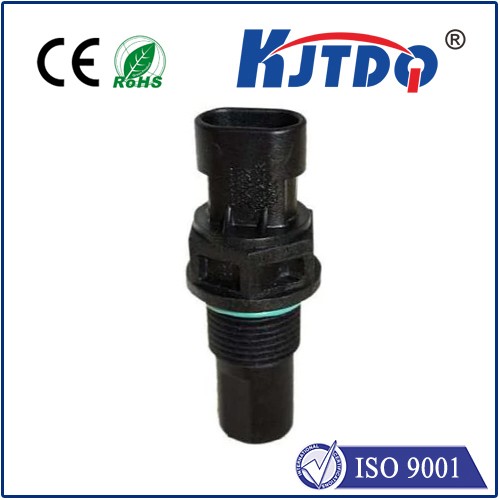

Description

The GS1023 series gear tooth speed sensors are Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. The single Hall design is immune to alignment issues allowing unlimited mounting positions. They provide a sinking current output.

Features

From near zero speed up to 15 kHz sensing capability,Resistant to fuels, solvents, and lubricants associated with engines, transmissions, brakes and chassis systems.
Supplied with installed Viton O-ring, Installs into a standard M20 x 1.5 O-ring port, RoHS compliant, IP67, Typical air gap of 1.5 mm*

Typical Applications

Speedometers, Anti-lock braking systems, Exercise equipment, CNC machine tools

Environmental Specifications

Vibration                                    Sinusoidal, 15 g max from 40 Hz to 2 kHz
Mechanical Shock Resistance        50 g
Maximum Speed Detection           15 kHz
Operating Temperature                -40 ⁰C to 140 ⁰C (-40 ⁰F to 284 ⁰F)
Storage Temperature                   -40 ⁰C to 150 ⁰C (-40 ⁰F to 302 ⁰F)
Ingress Protection                        IP67

Electrical Specifications
Operating Supply Voltage              5 to 24 VDC
Maximum Input Voltage                30 VDC
Maximum Reverse Voltage             26.5 VDC
Supply Current 3 mA typ.,              6 mA max
Output Sink Current                      25 mA max
Recommended Pull-Up Resistor      See chart

Mechanical Specifications
Housing Material                                                  Glass Reinforced Thermoplastic
Maximum Installation Torque Limit                        68.0 Nm (50 ft lb) on threads
Operating Air Gap / Sensing Distance*                   1.5 mm (0.06")

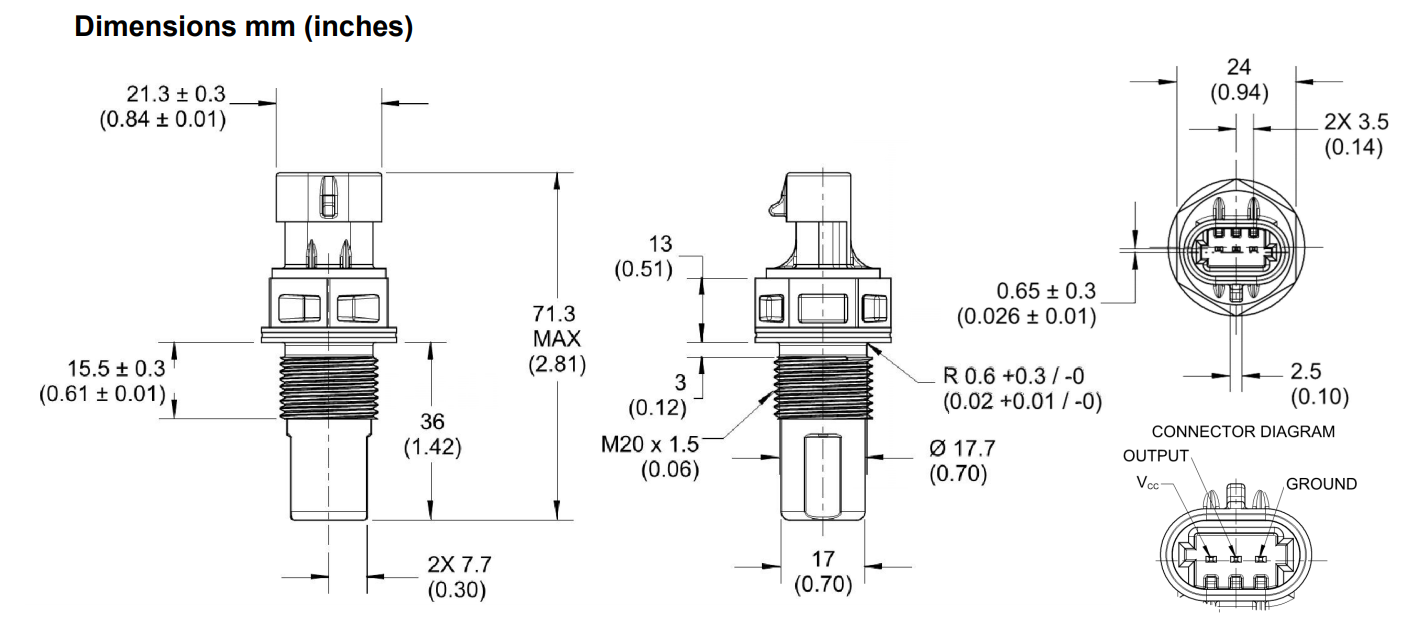

* With recommended target type; see drawing
Sensor Orientation                                                Not sensitiv

Description

The GS1023 series gear tooth speed sensors are Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. The single Hall design is immune to alignment issues allowing unlimited mounting positions. They provide a sinking current output.

Features

From near zero speed up to 15 kHz sensing capability,Resistant to fuels, solvents, and lubricants associated with engines, transmissions, brakes and chassis systems.
Supplied with installed Viton O-ring, Installs into a standard M20 x 1.5 O-ring port, RoHS compliant, IP67, Typical air gap of 1.5 mm*

Typical Applications

Speedometers, Anti-lock braking systems, Exercise equipment, CNC machine tools

Environmental Specifications

Vibration                                    Sinusoidal, 15 g max from 40 Hz to 2 kHz
Mechanical Shock Resistance        50 g
Maximum Speed Detection           15 kHz
Operating Temperature                -40 ⁰C to 140 ⁰C (-40 ⁰F to 284 ⁰F)
Storage Temperature                   -40 ⁰C to 150 ⁰C (-40 ⁰F to 302 ⁰F)
Ingress Protection                        IP67

Electrical Specifications
Operating Supply Voltage              5 to 24 VDC
Maximum Input Voltage                30 VDC
Maximum Reverse Voltage             26.5 VDC
Supply Current 3 mA typ.,              6 mA max
Output Sink Current                      25 mA max
Recommended Pull-Up Resistor      See chart

Mechanical Specifications
Housing Material                                                  Glass Reinforced Thermoplastic
Maximum Installation Torque Limit                        68.0 Nm (50 ft lb) on threads
Operating Air Gap / Sensing Distance*                   1.5 mm (0.06")
* With recommended target type; see drawing
Sensor Orientation                                                Not sensitiv
